Terminals Of ECM [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

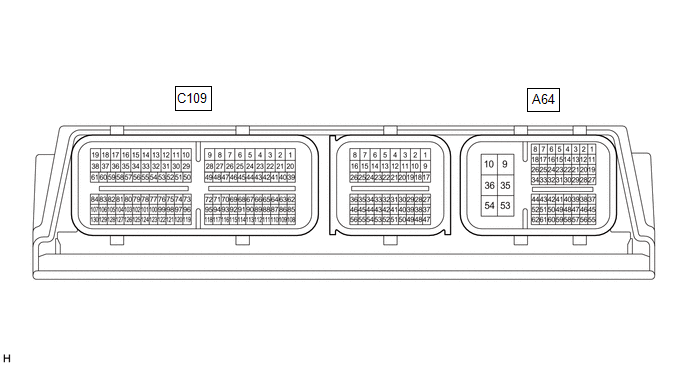

GTY1005515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. HINT:

    The standard normal voltage and resistance between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage and resistance for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    A64-1 (BATT) - A64-10 (E1) G - W-B Battery
    (for measuring battery voltage and for ECM memory)
    Always 11 to 14 V
    A64-10 (E1) - Body ground W-B - Body ground Ground Always Below 1 Ω
    C109-62 (LIN) - Body ground B - Body ground LIN communication line Ignition switch off
    (while LIN communication stopped)
    10 kΩ or higher
