Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

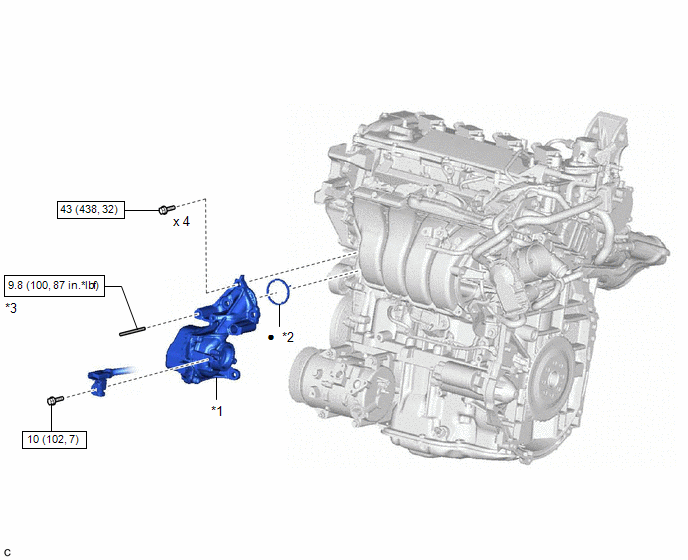

Fig 1: Water Pump Replacement Components With Torque Specifications
GTY1003804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) *2 GASKET
*3 STUD BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
