Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

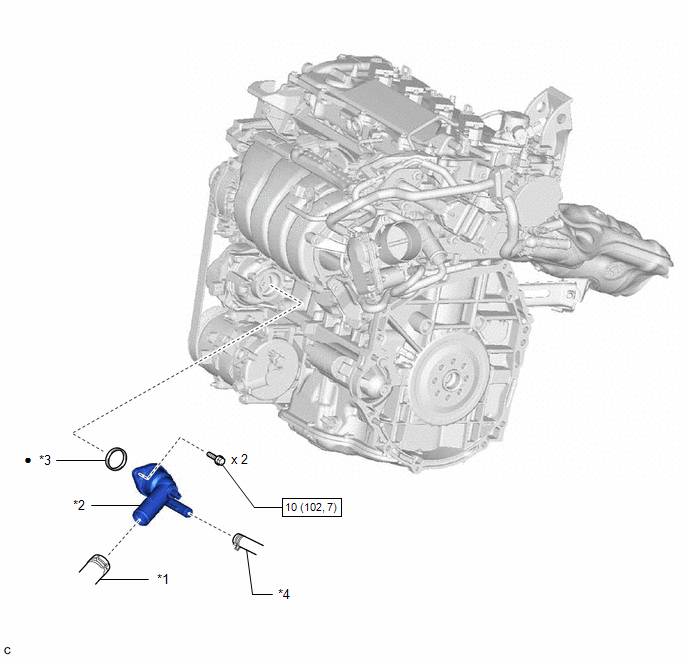

Fig 1: Thermostat Replacement Components With Torque Specifications
GTY1003119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 RADIATOR HOSE *2 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*3 GASKET *4 NO. 7 WATER BY-PASS HOSE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
