Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

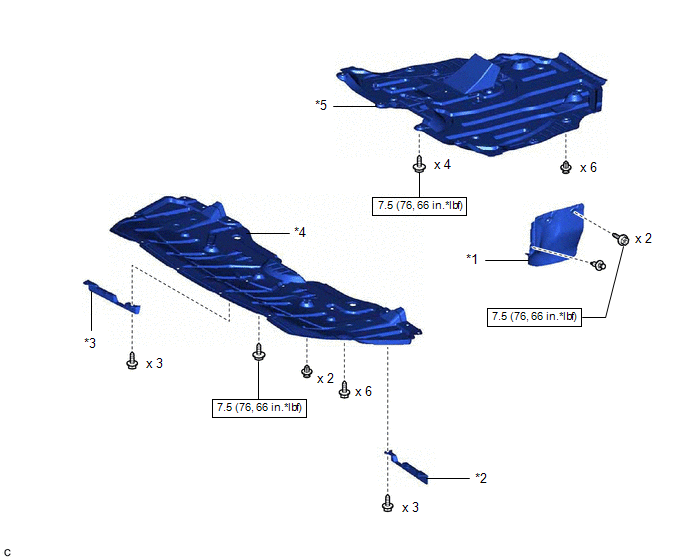

Fig 1: Flow Shutting Valve (for ATF) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FENDER APRON SEAL LH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	FRONT WHEEL OPENING EXTENSION PAD RH	*4	NO. 1 ENGINE UNDER COVER
*5	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

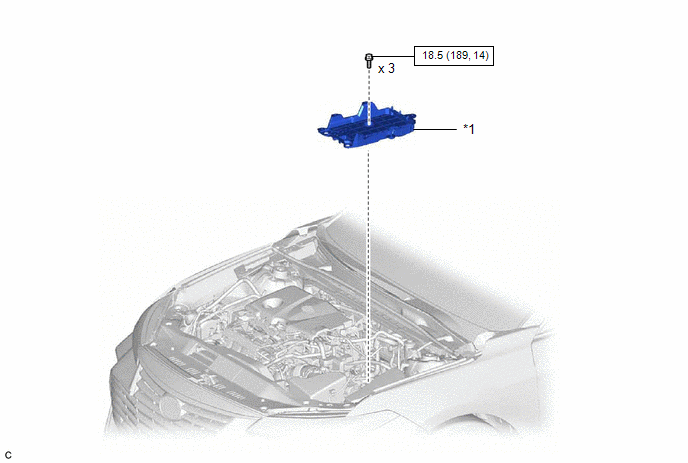

Fig 2: Flow Shutting Valve (for ATF) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY CLAMP SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 3: Flow Shutting Valve (for ATF) Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)	*2	TRANSMISSION BREATHER CLAMP
*3	HOSE CLAMP	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
