Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

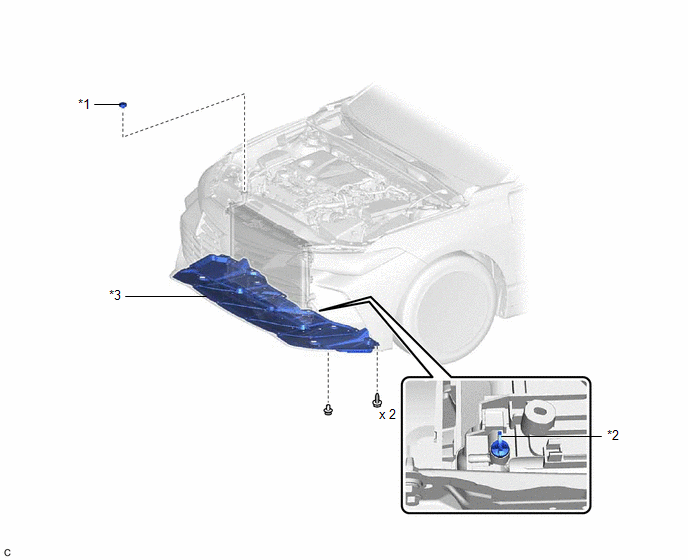

Fig 1: Coolant Replacement Components
GTY994753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 RADIATOR CAP SUB-ASSEMBLY *2 RADIATOR DRAIN COCK PLUG
*3 NO. 1 ENGINE UNDER COVER - -
