Parts Location [08/2020 - ]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Avalon and 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

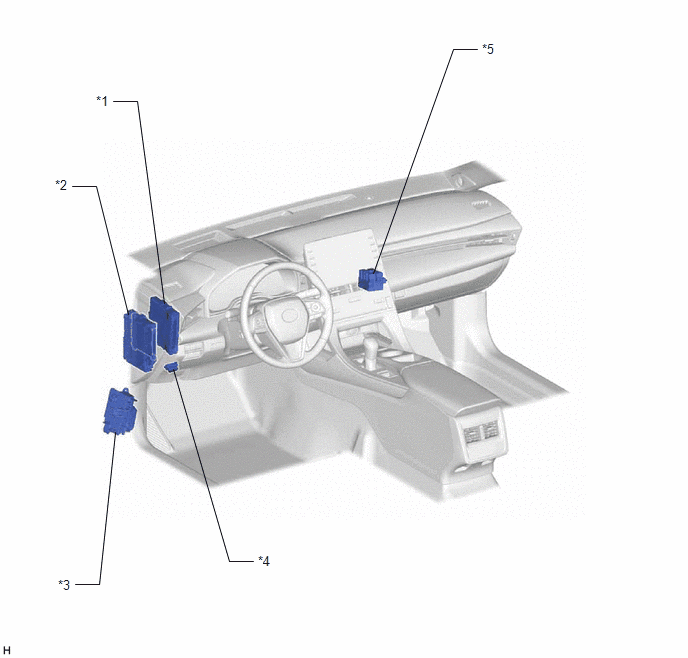

| *1 | HYBRID VEHICLE CONTROL ECU | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 FUSE |
| *3 | NO. 4 RELAY BLOCK - IGCT NO. 2 FUSE - PM-IGCT FUSE - BATT FAN FUSE |
*4 | DLC3 |
| *5 | NO. 3 RELAY BLOCK - IGCT RELAY |
- | - |

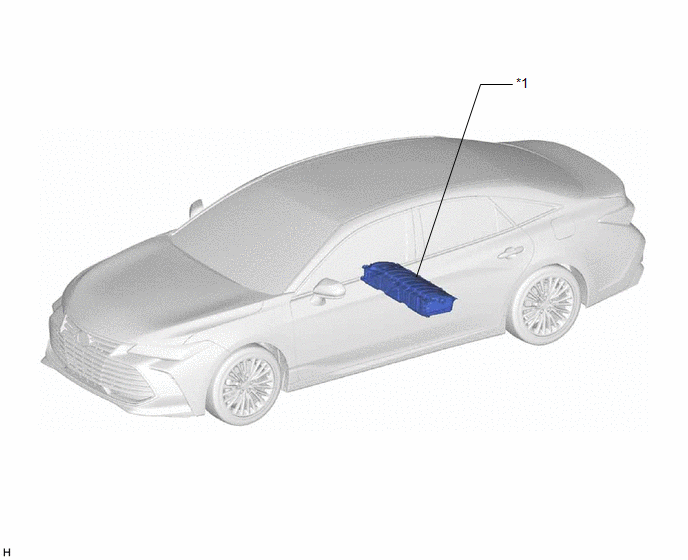

| *1 | BATTERY ECU ASSEMBLY | *2 | HYBRID BATTERY TERMINAL BLOCK |
| *3 | HV BATTERY JUNCTION BLOCK ASSEMBLY | *4 | SERVICE PLUG GRIP |
| *5 | BATTERY COOLING BLOWER ASSEMBLY | *6 | BATTERY CURRENT SENSOR |
| *7 | SMRB | *8 | SMRP |
| *9 | SMRG | - | - |
