Removal [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [08/2020 - ]

  2. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 5

  3. REMOVE CRANKSHAFT PULLEY ASSEMBLY

    See step  18

  4. REMOVE TIMING CHAIN COVER OIL SEAL

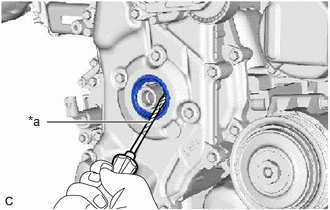

    1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain cover oil seal.
      GTY767346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
