Components [08/2020 - ]
WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

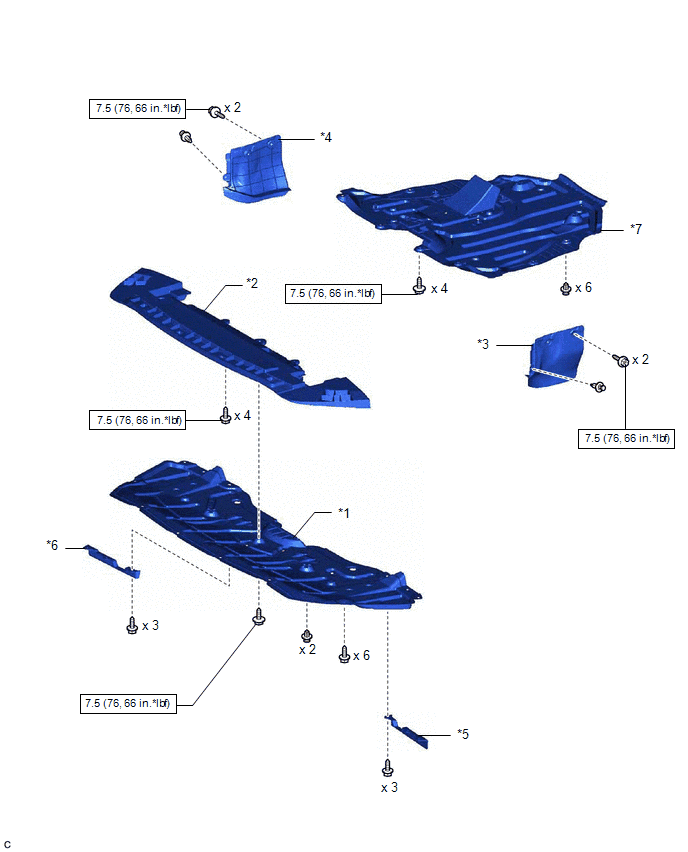

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE UNDER COVER |
*2 |
FRONT LOWER BUMPER ABSORBER |
| *3 |
FRONT FENDER APRON SEAL LH |
*4 |
FRONT FENDER APRON SEAL RH |
| *5 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*6 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *7 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

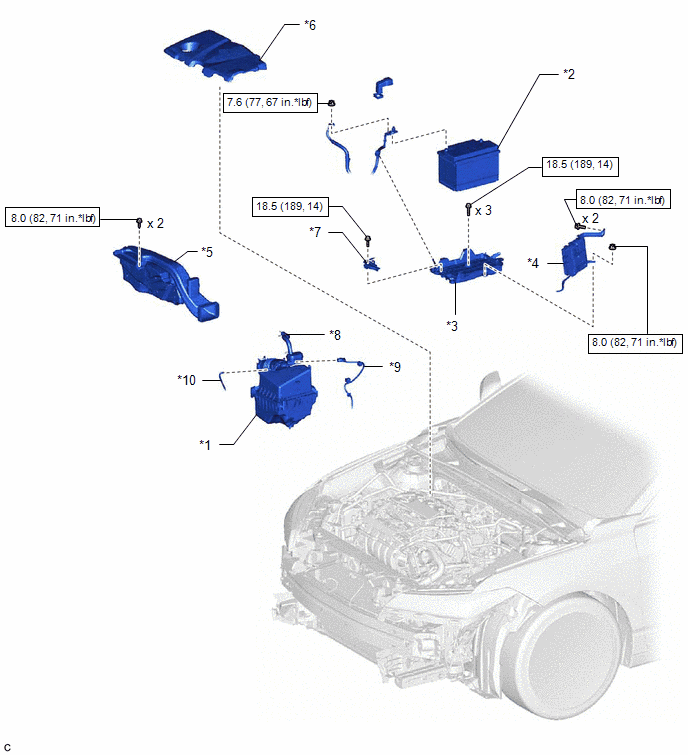

| Callout |
Description |
Callout |
Description |
| *1 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*2 |
BATTERY |
| *3 |
BATTERY CLAMP SUB-ASSEMBLY |
*4 |
ECM |
| *5 |
INLET AIR CLEANER ASSEMBLY |
*6 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *7 |
NO. 2 BATTERY CLAMP |
*8 |
NO. 2 VENTILATION HOSE |
| *9 |
MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR |
*10 |
VACUUM HOSE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

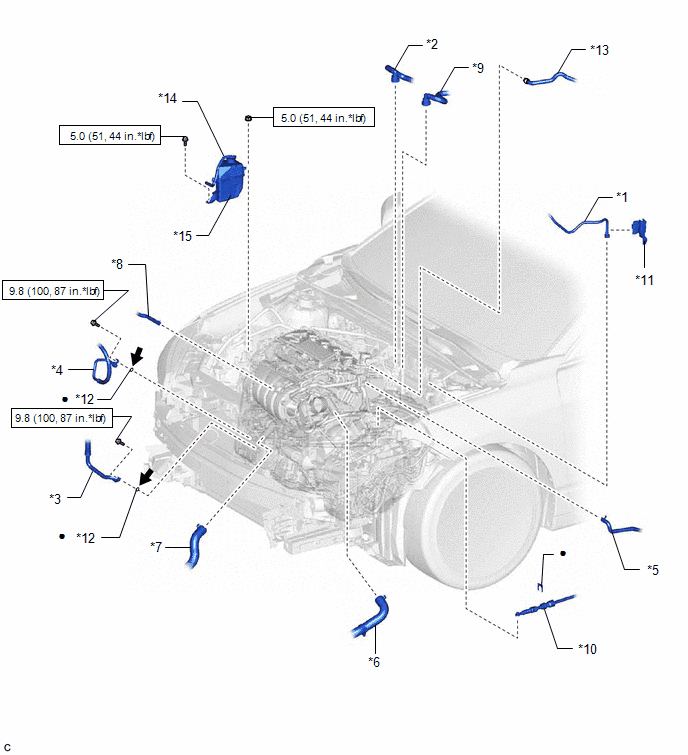

| Callout |
Description |
Callout |
Description |
| *1 |
FUEL TUBE SUB-ASSEMBLY |
*2 |
INLET HEATER WATER HOSE |
| *3 |
SUCTION HOSE SUB-ASSEMBLY |
*4 |
NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *5 |
NO. 1 FUEL VAPOR FEED HOSE |
*6 |
NO. 1 RADIATOR HOSE |
| *7 |
NO. 2 RADIATOR HOSE |
*8 |
NO. 5 WATER BY-PASS HOSE |
| *9 |
OUTLET HEATER WATER HOSE |
*10 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *11 |
EFI FUEL PIPE CLAMP |
*12 |
O-RING |
| *13 |
UNION TO CHECK VALVE HOSE |
*14 |
NO. 6 WATER BY-PASS HOSE |
| *15 |
RADIATOR RESERVE TANK ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Compressor oil ND-OIL 12 or equivalent |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

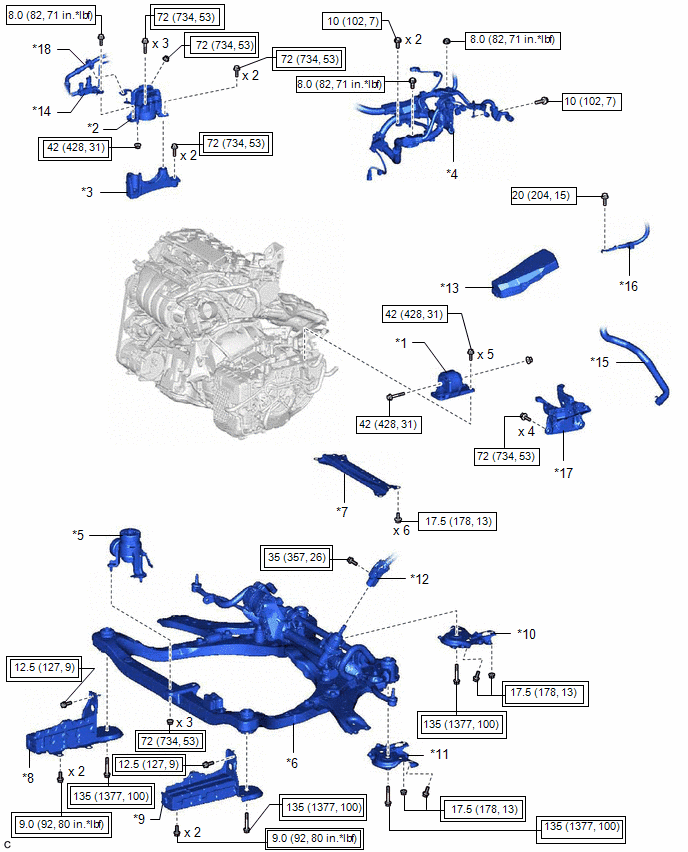

| Callout |
Description |
Callout |
Description |
| *1 |
REAR NO. 2 ENGINE MOUNTING INSULATOR |
*2 |
ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
| *3 |
ENGINE MOUNTING SPACER |
*4 |
WIRE HARNESS |
| *5 |
FRONT ENGINE MOUNTING INSULATOR |
*6 |
FRONT FRAME ASSEMBLY |
| *7 |
BODY MOUNTING PLATE |
*8 |
FRONT BUMPER EXTENSION SUB-ASSEMBLY RH |
| *9 |
FRONT BUMPER EXTENSION SUB-ASSEMBLY LH |
*10 |
FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH |
| *11 |
FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH |
*12 |
STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *13 |
RELAY BLOCK COVER |
*14 |
AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *15 |
WATER BY-PASS HOSE ASSEMBLY |
*16 |
EARTH WIRE |
| *17 |
ENGINE MOUNTING BRACKET SUB-ASSEMBLY LH |
*18 |
SUCTION TUBE SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE ASSEMBLY WITH TRANSAXLE |
*2 |
EXHAUST SENSOR CLAMP BRACKET |
| *3 |
REAR ENGINE MOUNTING INSULATOR |
*4 |
WIRE HARNESS |
| *5 |
VACUUM HOSE |
*6 |
FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE) |
| *7 |
HOSE CLAMP |
*8 |
TRANSMISSION BREATHER CLAMP |
| *9 |
WIRING HARNESS CLAMP BRACKET |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
AUTOMATIC TRANSAXLE ASSEMBLY |
*2 |
DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *3 |
FLYWHEEL HOUSING SIDE COVER |
*4 |
FLYWHEEL HOUSING UNDER COVER |
| *5 |
FUEL DELIVERY GUARD |
*6 |
STARTER ASSEMBLY |
| *7 |
REAR DRIVE PLATE SPACER |
*8 |
NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *9 |
DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
*10 |
BREATHER PLUG HOSE |
| *11 |
NO. 2 ENGINE WIRE |
*12 |
ENGINE WIRE |
| *13 |
FRONT ENGINE MOUNTING BRACKET |
*14 |
STEERING GEAR HEAT INSULATOR |
| *15 |
FUEL PUMP PROTECTOR |
*16 |
PROPELLER SHAFT HEAT INSULATOR |
| *a |
BLACK COLOR: x 1
SILVER COLOR: x 5 |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
Adhesive 1324 |
* |
Precoated part |
