Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

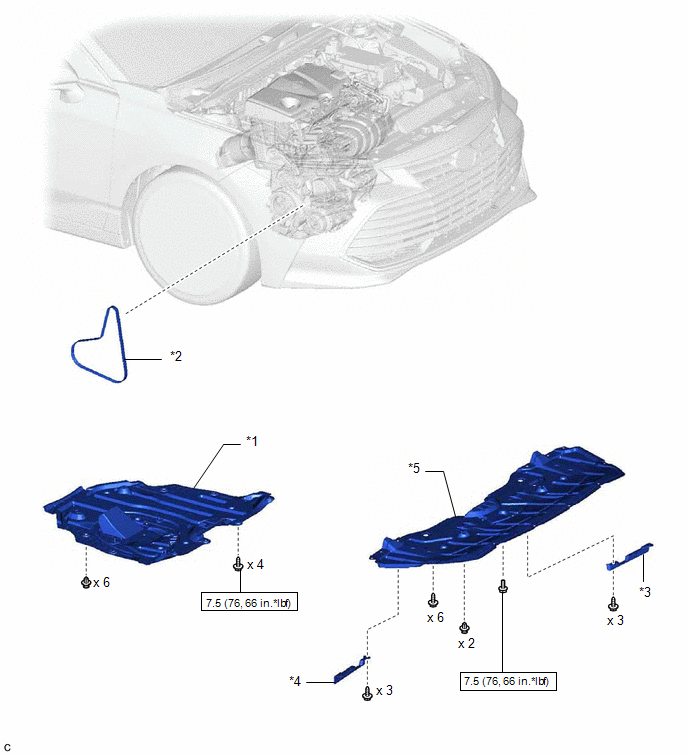

Fig 1: Drive Belt Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	*2	V-RIBBED BELT
*3	FRONT WHEEL OPENING EXTENSION PAD LH	*4	FRONT WHEEL OPENING EXTENSION PAD RH
*5	NO. 1 ENGINE UNDER COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
