Components [08/2020 - ]
WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
EXHAUST MANIFOLD (TWC: Front Catalyst) |
*2 |
MANIFOLD STAY |
| *3 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
*4 |
EXHAUST MANIFOLD TO HEAD GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

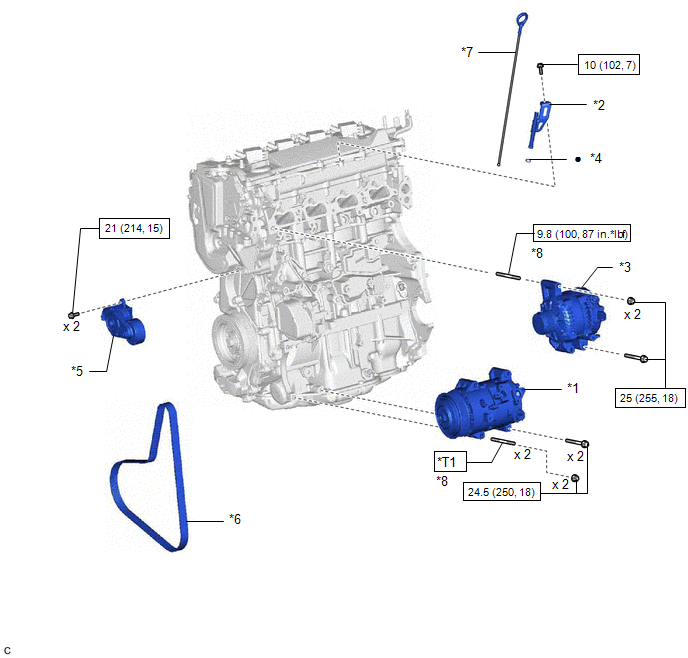

| *1 |
COMPRESSOR ASSEMBLY WITH PULLEY |
*2 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
| *3 |
GENERATOR ASSEMBLY |
*4 |
O-RING |
| *5 |
V-RIBBED BELT TENSIONER ASSEMBLY |
*6 |
V-RIBBED BELT |
| *7 |
ENGINE OIL LEVEL DIPSTICK |
*8 |
STUD BOLT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| *T1 |
For reusable stiffening crankcase assembly: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
For new stiffening crankcase assembly: 10 N*m (102 kgf*cm, 7 ft.*lbf) |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

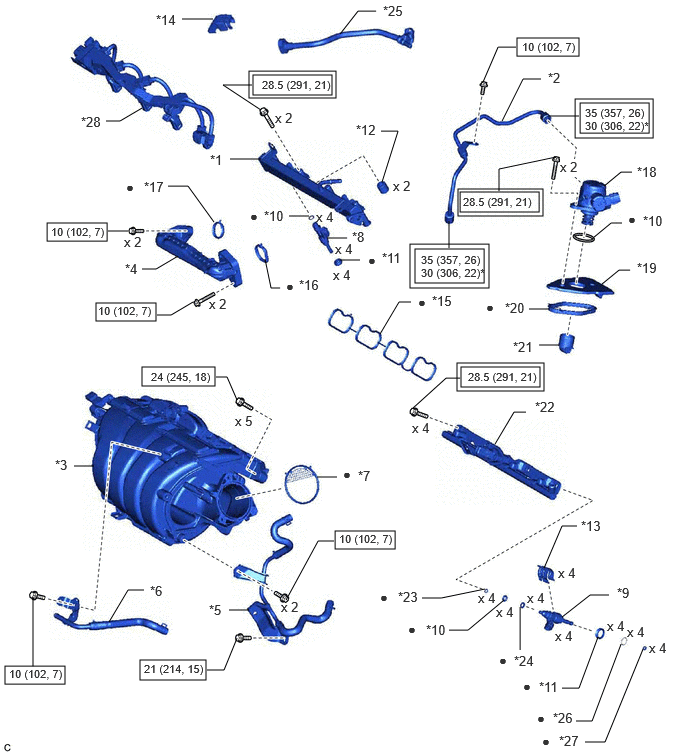

| *1 |
FUEL DELIVERY PIPE SUB-ASSEMBLY |
*2 |
NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 |
INTAKE MANIFOLD |
*4 |
NO. 1 EGR PIPE SUB-ASSEMBLY |
| *5 |
NO. 2 WATER BY-PASS PIPE |
*6 |
NO. 3 WATER BY-PASS PIPE |
| *7 |
THROTTLE BODY GASKET |
*8 |
PORT FUEL INJECTOR ASSEMBLY |
| *9 |
DIRECT FUEL INJECTOR ASSEMBLY |
*10 |
O-RING |
| *11 |
INJECTOR VIBRATION INSULATOR |
*12 |
NO. 1 DELIVERY PIPE SPACER |
| *13 |
NOZZLE HOLDER CLAMP |
*14 |
FUEL PIPE CLAMP |
| *15 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
*16 |
EGR VALVE ADAPTER GASKET |
| *17 |
EGR INLET GASKET |
*18 |
FUEL PUMP ASSEMBLY (for High Pressure) |
| *19 |
FUEL PUMP FLANGE |
*20 |
FUEL PUMP SPACER GASKET |
| *21 |
FUEL PUMP LIFTER ASSEMBLY |
*22 |
FUEL DELIVERY PIPE |
| *23 |
NO. 3 FUEL INJECTOR BACK-UP RING |
*24 |
NO. 1 FUEL INJECTOR BACK-UP RING |
| *25 |
FUEL TUBE SUB-ASSEMBLY |
*26 |
C-RING |
| *27 |
FUEL INJECTOR SEAL |
*28 |
NO. 5 ENGINE WIRE |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| * |
For use with a union nut wrench |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

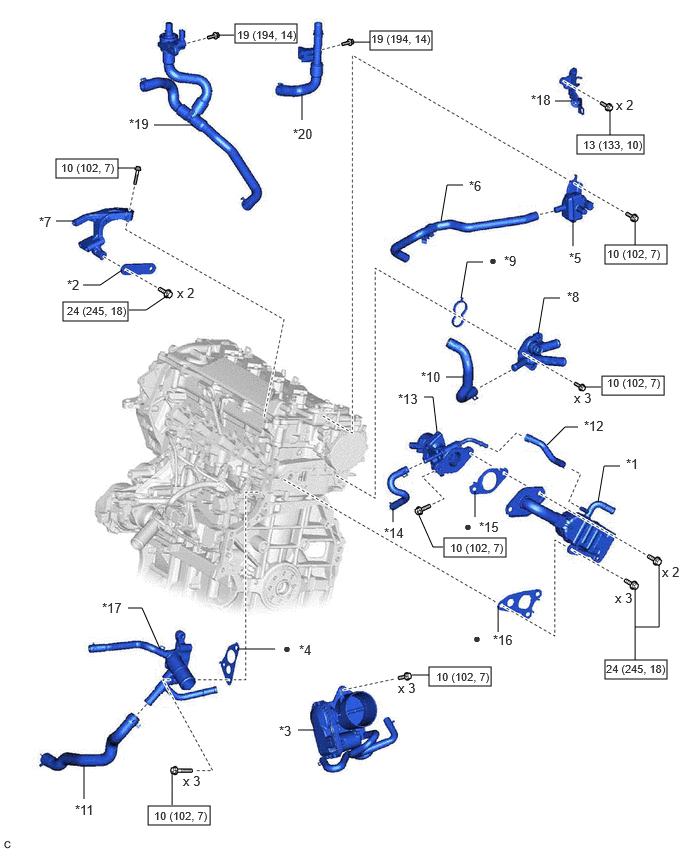

| Callout |
Description |
Callout |
Description |
| *1 |
EGR COOLER ASSEMBLY |
*2 |
NO. 1 EGR COOLER BRACKET |
| *3 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*4 |
WATER OUTLET GASKET |
| *5 |
PURGE VALVE (PURGE VSV) |
*6 |
NO. 2 FUEL VAPOR FEED HOSE |
| *7 |
EGR VALVE BRACKET |
*8 |
OUTLET WATER BY-PASS SUB-ASSEMBLY |
| *9 |
OUTLET WATER PIPE GASKET |
*10 |
NO. 3 WATER BY-PASS HOSE |
| *11 |
NO. 7 WATER BY-PASS HOSE |
*12 |
NO. 4 WATER BY-PASS HOSE |
| *13 |
EGR VALVE ASSEMBLY |
*14 |
NO. 8 WATER BY-PASS HOSE |
| *15 |
EGR VALVE GASKET |
*16 |
EGR COOLER GASKET |
| *17 |
WATER OUTLET |
*18 |
WATER HOSE CLAMP BRACKET |
| *19 |
FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY) |
*20 |
NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

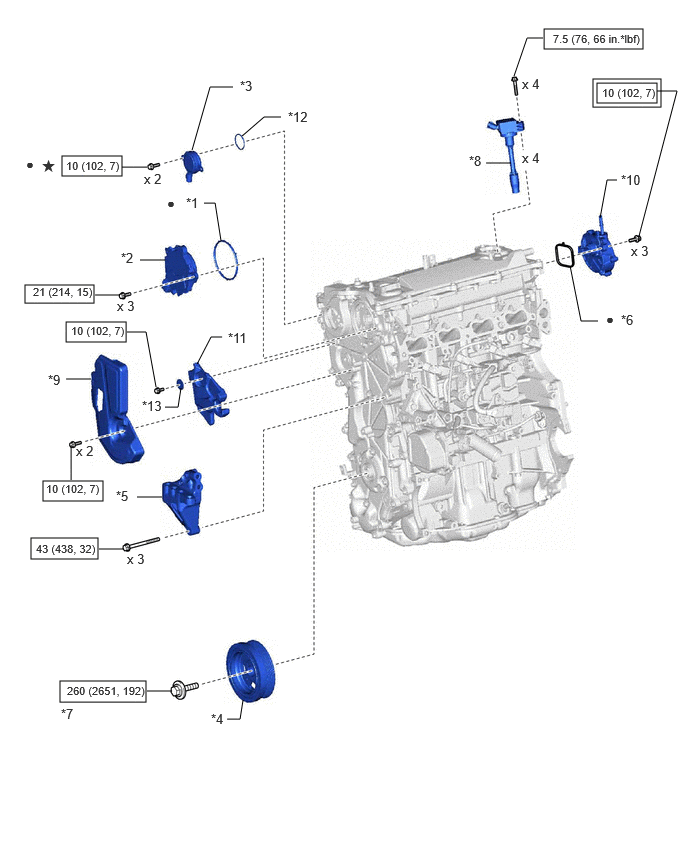

| Callout |
Description |
Callout |
Description |
| *1 |
CAM TIMING CONTROL MOTOR O-RING |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*4 |
CRANKSHAFT PULLEY ASSEMBLY |
| *5 |
ENGINE MOUNTING BRACKET RH |
*6 |
NO. 1 VACUUM PUMP O-RING |
| *7 |
CRANKSHAFT PULLEY BOLT |
*8 |
IGNITION COIL ASSEMBLY |
| *9 |
NO. 2 ENGINE COVER |
*10 |
VACUUM PUMP ASSEMBLY |
| *11 |
TIMING GEAR COVER INSULATOR |
*12 |
O-RING |
| *13 |
PLATE WASHER |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

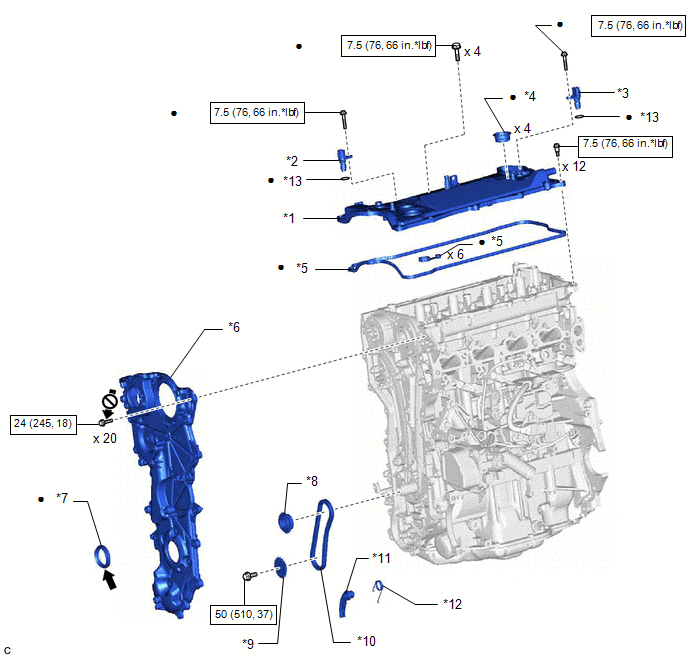

| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *3 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
*4 |
SPARK PLUG TUBE GASKET |
| *5 |
CYLINDER HEAD COVER GASKET |
*6 |
NO. 2 TIMING CHAIN COVER ASSEMBLY |
| *7 |
TIMING CHAIN COVER OIL SEAL |
*8 |
OIL PUMP DRIVE SPROCKET |
| *9 |
OIL PUMP DRIVE SHAFT SPROCKET |
*10 |
OIL PUMP DRIVE CHAIN SUB-ASSEMBLY |
| *11 |
CHAIN TENSIONER PLATE |
*12 |
CHAIN DAMPER SPRING |
| *13 |
O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
* |
Precoated part |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

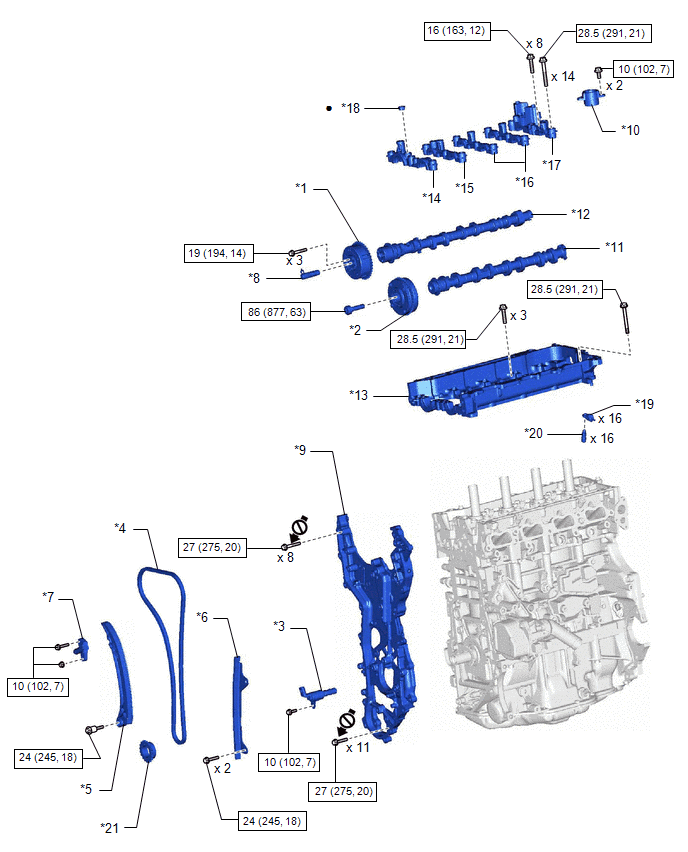

| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
*2 |
CAMSHAFT TIMING GEAR ASSEMBLY |
| *3 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
*4 |
CHAIN SUB-ASSEMBLY |
| *5 |
CHAIN TENSIONER SLIPPER |
*6 |
NO. 1 CHAIN VIBRATION DAMPER |
| *7 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*8 |
CAMSHAFT TIMING VALVE ASSEMBLY |
| *9 |
TIMING CHAIN COVER ASSEMBLY |
*10 |
FUEL PUMP LIFTER GUIDE |
| *11 |
CAMSHAFT |
*12 |
NO. 2 CAMSHAFT |
| *13 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
*14 |
NO. 1 CAMSHAFT BEARING CAP |
| *15 |
NO. 2 CAMSHAFT BEARING CAP |
*16 |
NO. 3 CAMSHAFT BEARING CAP |
| *17 |
NO. 4 CAMSHAFT BEARING CAP |
*18 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *19 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
*20 |
VALVE LASH ADJUSTER ASSEMBLY |
| *21 |
CRANKSHAFT TIMING SPROCKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD SUB-ASSEMBLY |
*2 |
CYLINDER HEAD GASKET |
| *3 |
PLATE WASHER |
*4 |
CYLINDER HEAD SET BOLT |
| *5 |
VALVE STEM CAP |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
• |
Non-reusable part |
| *T1 |
1st: 90 (918, 66)
2nd: Turn 90°
3rd: Turn 90° |
- |
- |
