Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transmission Wire Replacement Components With Torque Specifications (1 Of 5)
GTY977636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE UNDER COVER *2 NO. 2 ENGINE UNDER COVER ASSEMBLY
*3 FRONT WHEEL OPENING EXTENSION PAD LH *4 FRONT WHEEL OPENING EXTENSION PAD RH
*5 FRONT FENDER APRON SEAL LH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

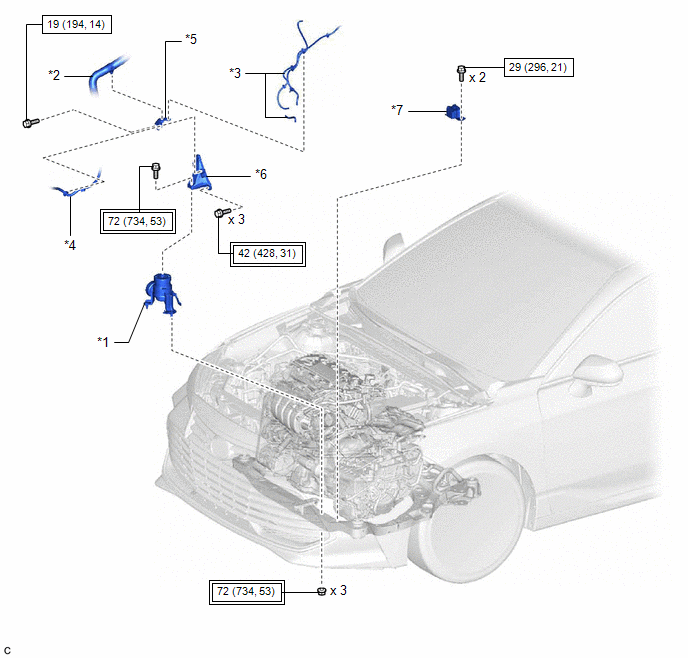

Fig 2: Transmission Wire Replacement Components With Torque Specifications (2 Of 5)
GTY979945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT ENGINE MOUNTING INSULATOR *2 RADIATOR HOSE
*3 VACUUM HOSE *4 NO. 2 ENGINE WIRE
*5 NO. 1 RADIATOR BRACKET *6 FRONT ENGINE MOUNTING BRACKET
*7 FRONT SUSPENSION MEMBER DYNAMIC DAMPER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Fig 3: Transmission Wire Replacement Components With Torque Specifications (3 Of 5)
GTY958307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REFILL PLUG *2 NO. 1 TRANSMISSION OIL FILLER TUBE
*3 OVERFLOW PLUG *4 GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -

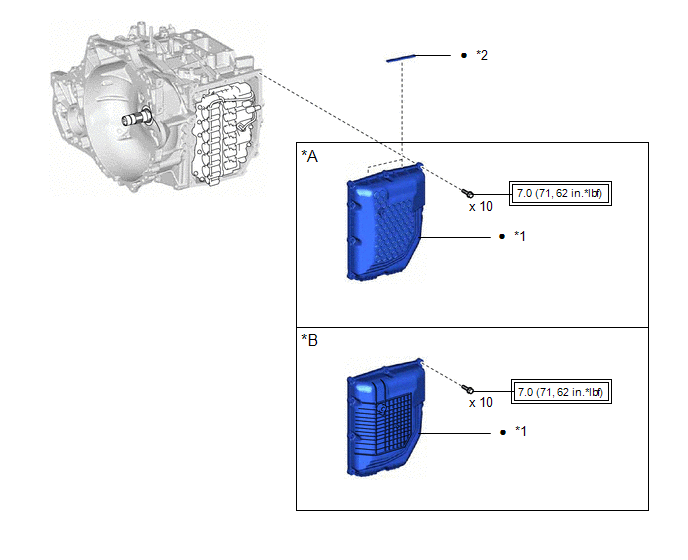

Fig 4: Transmission Wire Replacement Components With Torque Specifications (4 Of 5)
GTY978626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AISIN AW Made *B for AWNC Made
*1 TRANSMISSION CASE SIDE COVER *2 TRANSMISSION VIBRATION CONTROL RUBBER
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Fig 5: Transmission Wire Replacement Components With Torque Specifications (5 Of 5)
GTY955229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL COOLER UNION SUB-ASSEMBLY *2 TRANSMISSION WIRE
*3 OIL COOLER UNION BOLT *4 GASKET
*5 TEMPERATURE SENSOR CLAMP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -
