Installation [08/2020 - ]: Procedure
WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

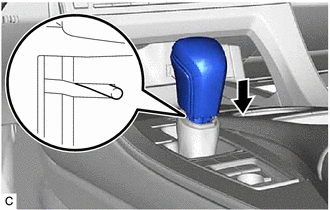

- Install the shift lever knob sub-assembly to the transmission floor shift assembly.
- Engage the 2 claws to connect the shifting hole cover sub-assembly as shown in the illustration.NOTE:
Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.
- Install the shift lever knob sub-assembly to the transmission floor shift assembly.
