Components [08/2020 - ]
WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | NO. 1 ENGINE UNDER COVER | *2 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 | FRONT FENDER APRON SEAL LH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

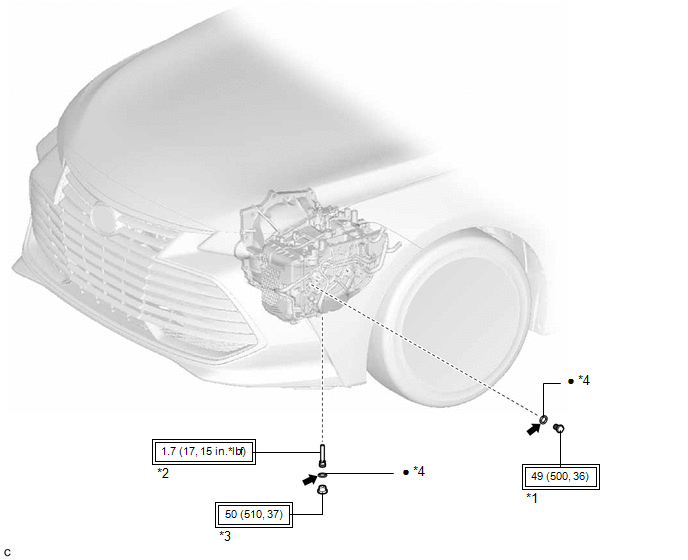

| Callout | Description | Callout | Description |
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
