Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Automatic Transaxle Assembly Components With Torque Specifications (1 Of 5)
GTY958611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VACUUM HOSE *2 FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
*3 WATER BY-PASS HOSE ASSEMBLY *4 STEERING GEAR HEAT INSULATOR
*5 WIRE HARNESS *6 FRONT FRAME ASSEMBLY
*7 TRANSMISSION BREATHER CLAMP *8 HOSE CLAMP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Fig 2: Automatic Transaxle Assembly Components With Torque Specifications (2 Of 5)
GTY957868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FLYWHEEL HOUSING UNDER COVER *2 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*3 BREATHER PLUG HOSE *4 FLYWHEEL HOUSING SIDE COVER
*5 STARTER ASSEMBLY *6 FUEL DELIVERY GUARD
*7 FUEL PUMP PROTECTOR *8 FRONT ENGINE MOUNTING BRACKET
*9 AUTOMATIC TRANSAXLE ASSEMBLY *10 TORQUE CONVERTER ASSEMBLY
*11 BREATHER PLUG SUB-ASSEMBLY *12 NO. 2 ENGINE WIRE
*a BLACK COLOR: x 1
SILVER COLOR: x 5		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent Toyota Genuine Clutch Spline Grease or equivalent
MP grease * Precoated part
Fig 3: Automatic Transaxle Assembly Components With Torque Specifications (3 Of 5)
GTY958637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR NO. 2 ENGINE MOUNTING INSULATOR *2 PROPELLER SHAFT HEAT INSULATOR
*3 REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY *4 OUTLET NO. 1 OIL COOLER HOSE
*5 INLET NO. 1 OIL COOLER HOSE *6 NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE
*7 TRANSMISSION OIL COOLER *8 NO. 1 TRANSMISSION CONTROL CABLE BRACKET
*9 REAR NO. 2 ENGINE MOUNTING BRACKET *10 INLET NO. 2 OIL COOLER HOSE
*11 OUTLET NO. 2 OIL COOLER HOSE *12 REAR ENGINE MOUNTING BRACKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Fig 4: Automatic Transaxle Assembly Components With Torque Specifications (4 Of 5)
GTY978117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 WIRE HARNESS CLAMP BRACKET *2 TRANSMISSION CASE PLUG ASSEMBLY
*3 TRANSMISSION VIBRATION CONTROL RUBBER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -

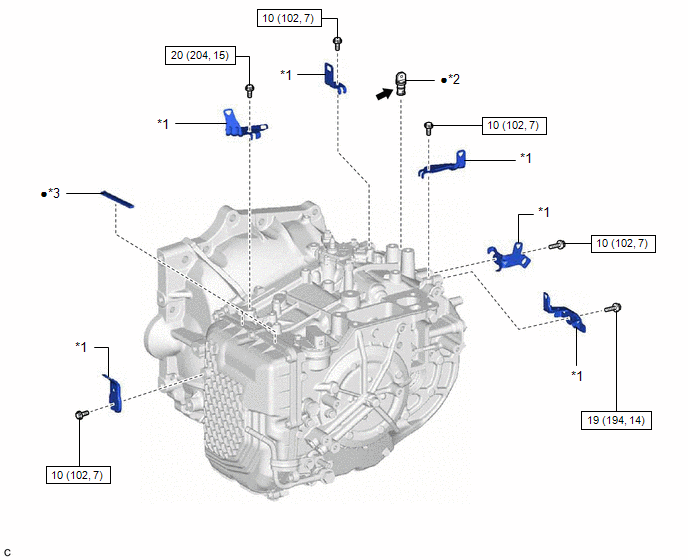

Fig 5: Automatic Transaxle Assembly Components With Torque Specifications (5 Of 5)
GTY978233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSFER ASSEMBLY *2 TRANSFER AND TRANSAXLE SETTING STUD BOLT
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
* For use with SST and a union nut wrench • Non-reusable part
* Precoated part - -
