Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Oil Pan And Oil Level Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

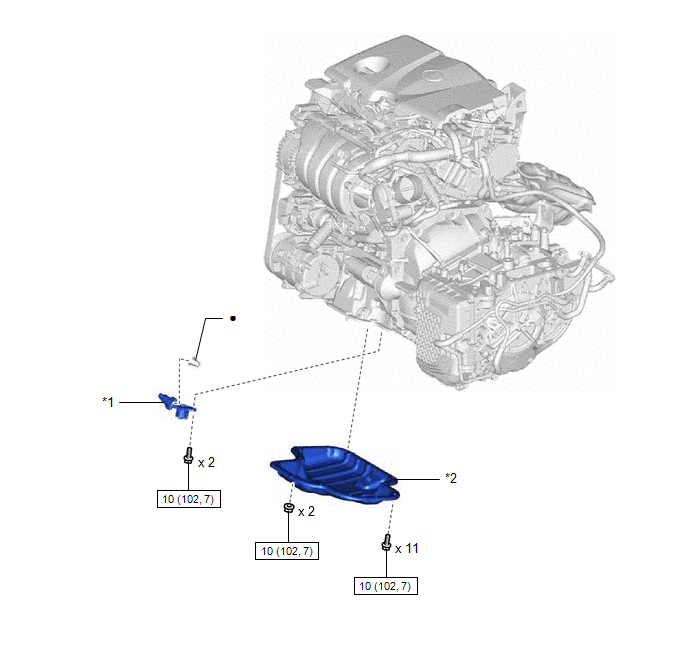

Fig 2: Oil Pan And Oil Level Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
