Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

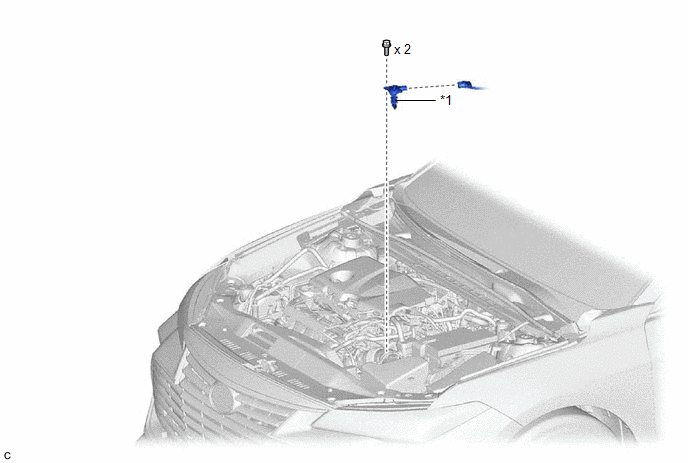

Fig 1: Mass Air Flow Meter Replacement Components
GTY1001305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
