Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

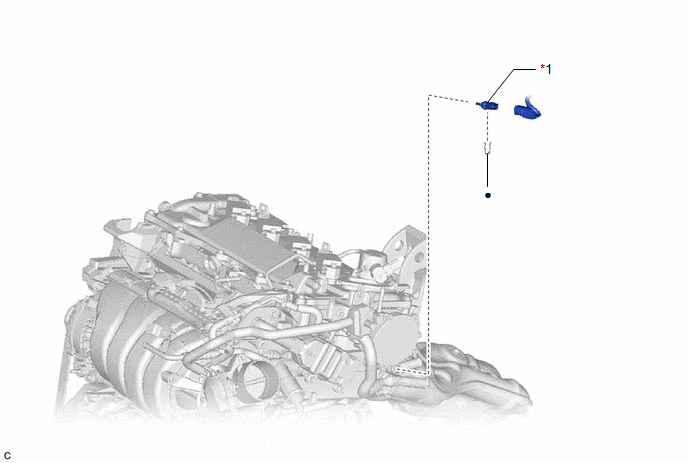

Fig 1: Engine Coolant Temperature Sensor Replacement Components
GTY1001605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE COOLANT TEMPERATURE SENSOR - -
• Non-reusable part - -
