Components [08/2020 - ]
WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

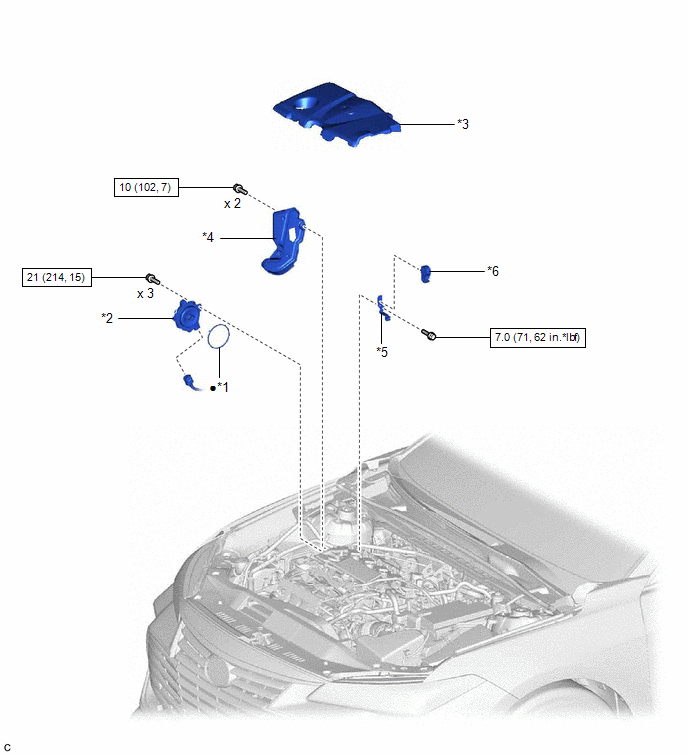

| Callout | Description | Callout | Description |
| *1 | CAM TIMING CONTROL MOTOR O-RING | *2 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | NO. 2 ENGINE COVER |
| *5 | NO. 1 BRAKE TUBE CLAMP BRACKET | *6 | PIPING CLAMP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
