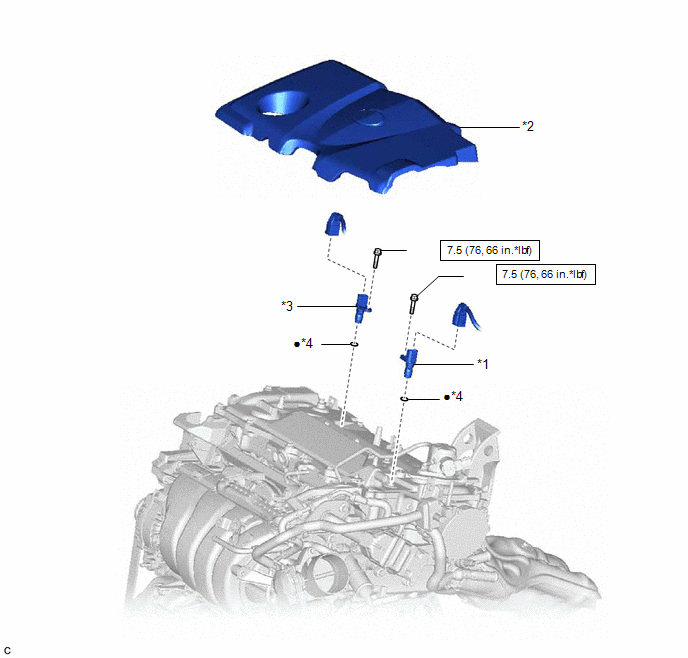

Components [08/2020 - ]
WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | CAMSHAFT POSITION SENSOR (for Intake Side) | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *4 | O-RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
