Removal [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - ]

  2. REMOVE CENTER STOP LIGHT SET

    Refer to REMOVAL [04/2018 - ]

  3. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD (w/o Seat Heater System)

    Refer to PROCEDURE - Step 3 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 - ]

  4. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 17 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 17 [08/2021 - ]

  5. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 11 [08/2021 - ]

  7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 14 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 14 [08/2021 - ]

  9. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE ROOF SIDE INNER GARNISH LH

    Refer to PROCEDURE - Step 15 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - ]

  11. REMOVE ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR SEAT SHOULDER BELT COVER

    Refer to PROCEDURE - Step 20 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 20 [08/2021 - ]

  13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 21 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 21 [08/2021 - ]

  14. REMOVE ROOM PARTITION BOARD LH

    Refer to PROCEDURE - Step 14 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 14 [08/2021 - ]

  15. REMOVE FUEL PUMP CONTROL ECU

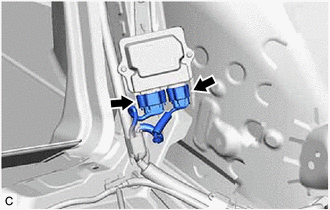

    1. Disconnect the 2 fuel pump control ECU connectors.
      GTY996343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

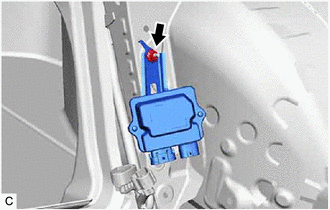

    2. Remove the nut and fuel pump control ECU from the vehicle body.
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

      GTY995941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FUEL PUMP CONTROL ECU BRACKET
    1. Remove the 2 bolts and fuel pump control ECU bracket from the fuel pump control ECU.
      GTY947461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
