Removal [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

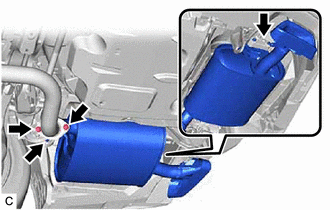

    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly from the center exhaust pipe assembly.
      GTY1001129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the center exhaust pipe assembly.
  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY LH
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

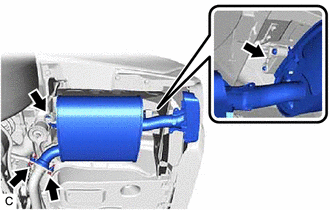

    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly LH from the center exhaust pipe assembly.
      GTY1001128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly LH from the 2 exhaust pipe supports.
    3. Remove the gasket from the center exhaust pipe assembly.
  3. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

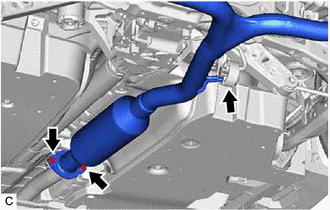

    1. Remove the 2 bolts and disconnect the center exhaust pipe assembly from the front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY1001143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the center exhaust pipe assembly from the exhaust pipe support.
    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).
  4. REMOVE FRONT FLOOR COVER LH
    1. Remove the 3 bolts and 4 clips (A).
      GTY947992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover LH.
  5. REMOVE FRONT FLOOR COVER RH
    1. Remove the 3 bolts and 3 clips (A).
      GTY947453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet (B) and 7 clips (C) to remove the front floor cover RH.
  6. REMOVE FRONT CENTER FLOOR BRACE
    1. Remove the 4 bolts and front center floor brace from the vehicle body.
      GTY948247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CENTER FLOOR CROSSMEMBER BRACE
    1. Remove the 4 bolts and center floor crossmember brace from the vehicle body.
      GTY948244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE AIR FUEL RATIO SENSOR (for Sensor 2)

    Refer to REMOVAL [08/2020 - ]

  9. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 2 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst).
      GTY948245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the 2 exhaust pipe supports.
    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).
