Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

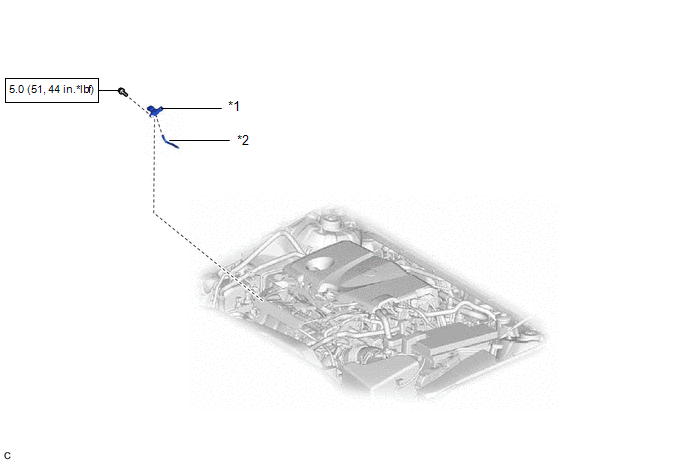

Fig 1: Vacuum Sensor Replacement Components With Torque Specifications
GTY1000733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) *2 VACUUM HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -
