Components [08/2020 - ]

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

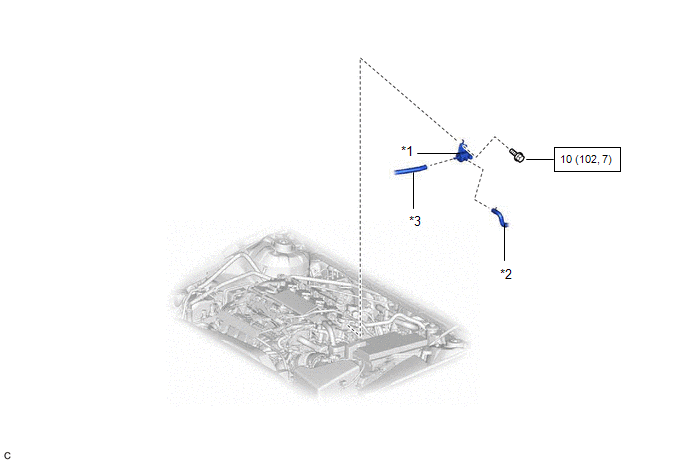

Fig 1: Purge Valve Replacement Components With Torque Specifications
GTY1000179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PURGE VALVE (PURGE VSV) *2 NO. 1 FUEL VAPOR FEED HOSE
*3 NO. 2 FUEL VAPOR FEED HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
