Active Control Engine Mount System [08/2020 - ]: Description
WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

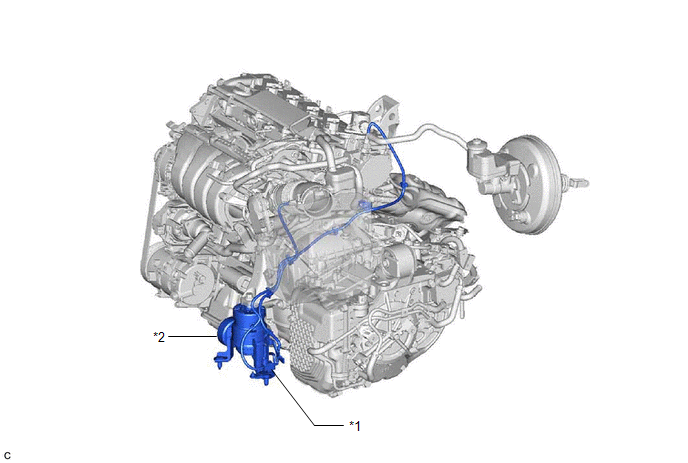

LOCATION
| *1 | Vacuum Switching Valve (for Active Control Engine Mount System) | *2 | Front Engine Mounting Insulator |
The active control engine mount system decreases engine vibration at a low engine speed using the vacuum switching valve (for active control engine mount system). The vacuum switching valve (for active control engine mount system) is controlled by a pulse signal transmitted to the vacuum switching valve (for active control engine mount system) from the ECM. The frequency of this pulse signal is matched to the engine speed to decrease engine vibration.
