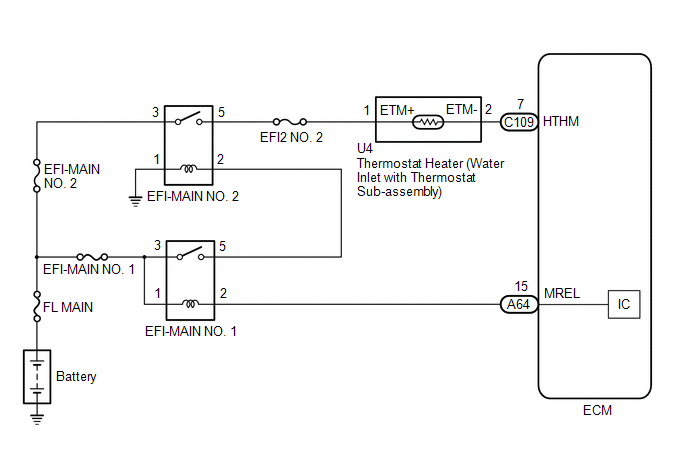

DTC P0597-12: Thermostat Heater Control Circuit Short to Battery [08/2020 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
