Drive Start Control [08/2020 - ]: Description

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

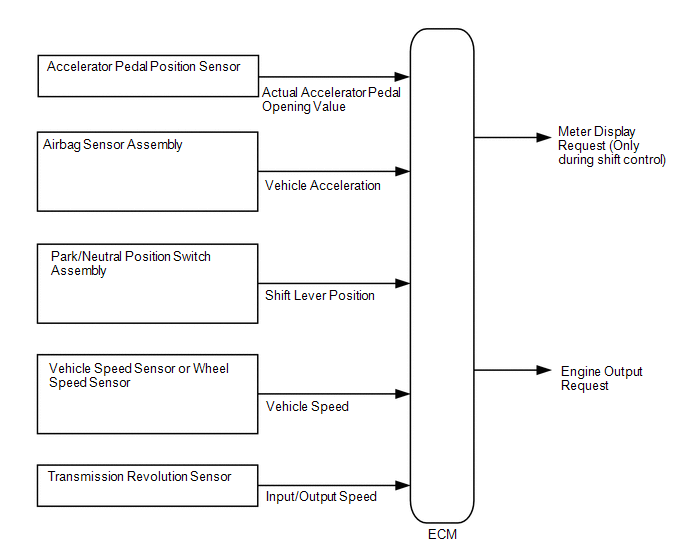

The drive start control is controlled by the ECM.

If the ECM determines that the shift lever and accelerator pedal are operated abnormally, engine output is restricted and, when necessary, a warning is displayed on the combination meter assembly.

GTY1010395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
