Parts Location [08/2020 - ]: Illustration

WARNING: This page is about a different car, the 2022 Toyota Avalon and 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 14 Speakers	*B	for 8 Speakers

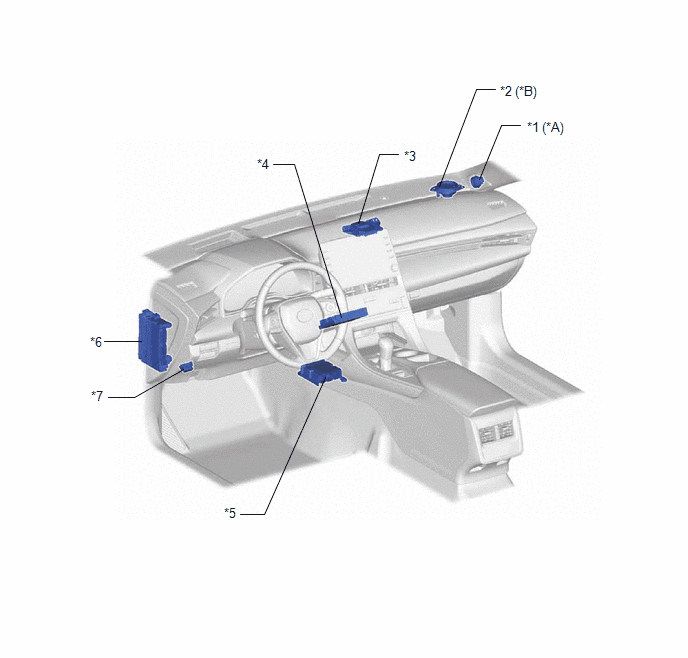

*1	FRONT NO. 3 SPEAKER ASSEMBLY (RH)	*2	FRONT NO. 2 SPEAKER ASSEMBLY (RH)
*3	TELEPHONE AND GPS ANTENNA (for Front Side) - Telephone Sub	*4	DCM (TELEMATICS TRANSCEIVER) - BUB (BACK-UP BATTERY)
*5	AIRBAG ECU ASSEMBLY	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DCM FUSE - ECU-IG2 NO. 3 FUSE
*7	DLC3	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

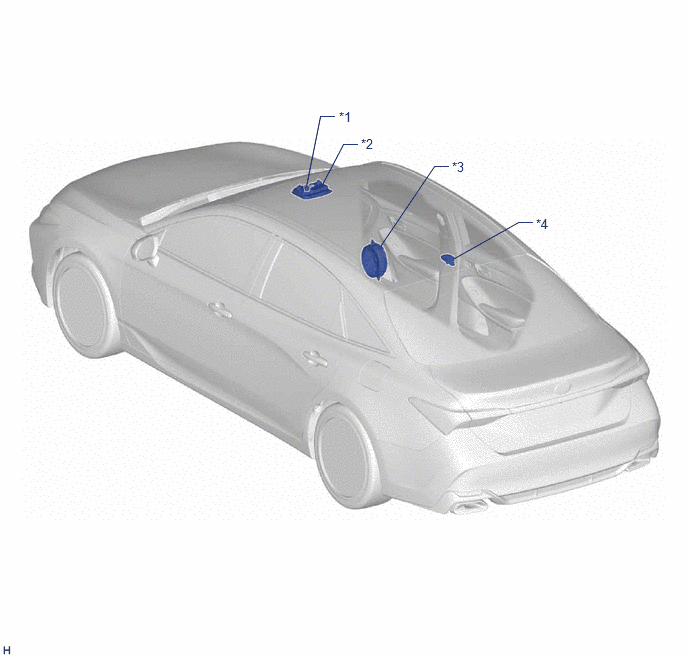

*1	TELEPHONE MICROPHONE ASSEMBLY	*2	ROOF CONSOLE BOX SUB-ASSEMBLY - MANUAL (SOS) SWITCH
*3	FRONT NO. 1 SPEAKER ASSEMBLY (RH)	*4	TELEPHONE AND GPS ANTENNA (for Roof Side) - Telephone Main - GPS

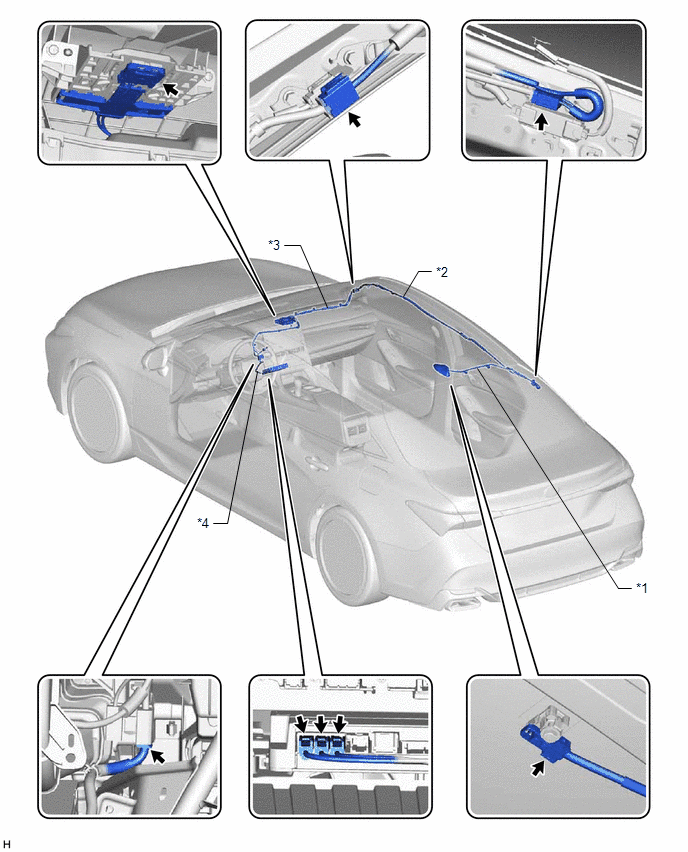

*1	TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)	*2	TELEPHONE AND GPS ANTENNA CORD (NO. 3 ANTENNA CORD SUB-ASSEMBLY)
*3	TELEPHONE AND GPS ANTENNA CORD (NO. 4 ANTENNA CORD SUB-ASSEMBLY)	*4	TELEPHONE AND GPS ANTENNA CORD (NO. 6 ANTENNA CORD SUB-ASSEMBLY)
