Parts Location [08/2021 - ]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

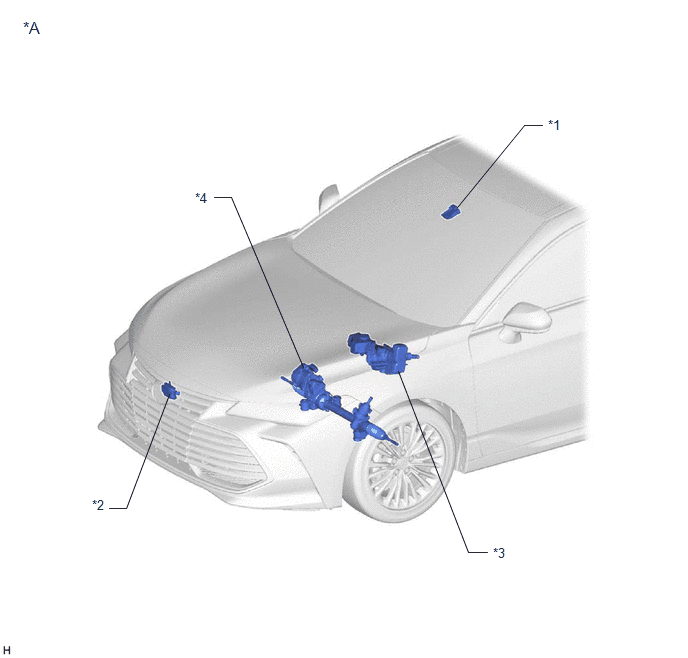

| *A | for HV Model | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *4 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) |

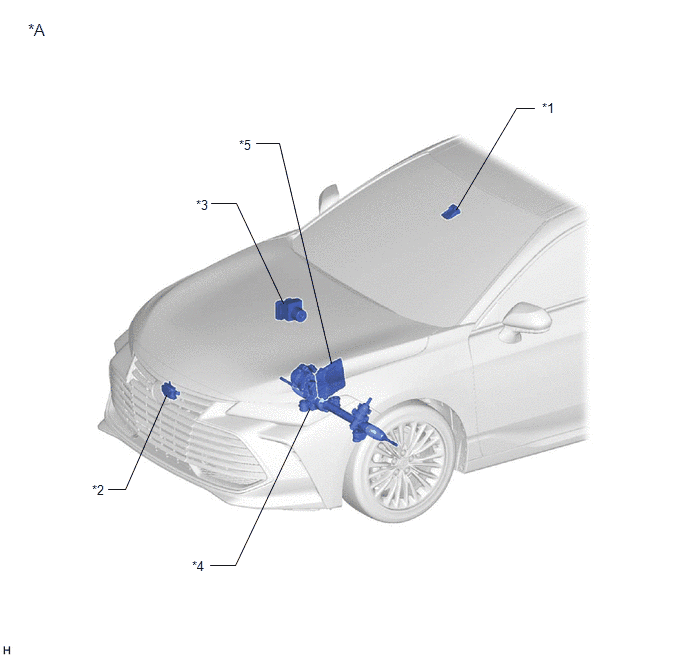

| *A | for Gasoline Model | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) |
| *5 | ECM | - | - |
