System Diagram [08/2020 - ]

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [08/2020 - 08/2021] , or refer to SYSTEM DIAGRAM [08/2021 - ]

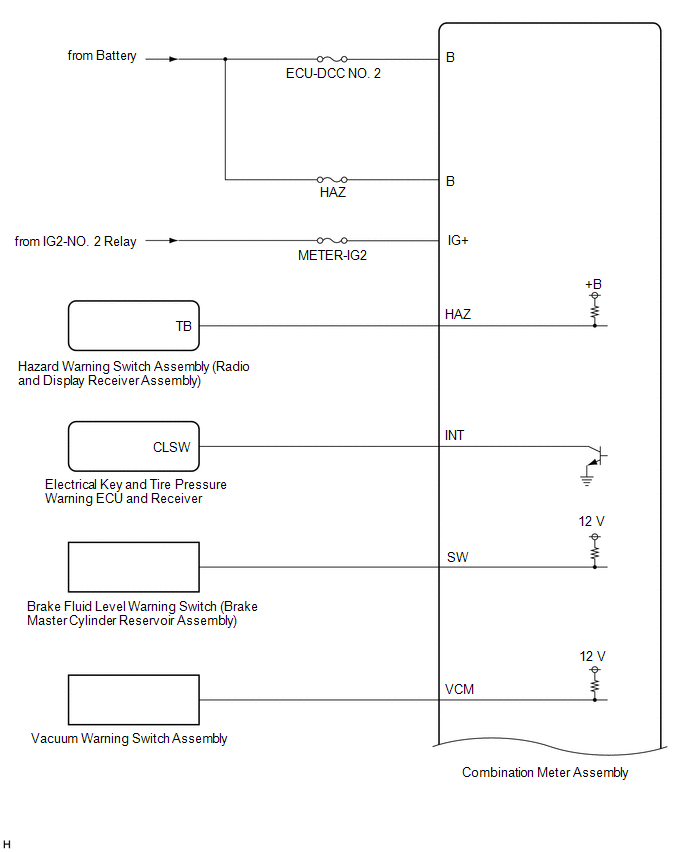

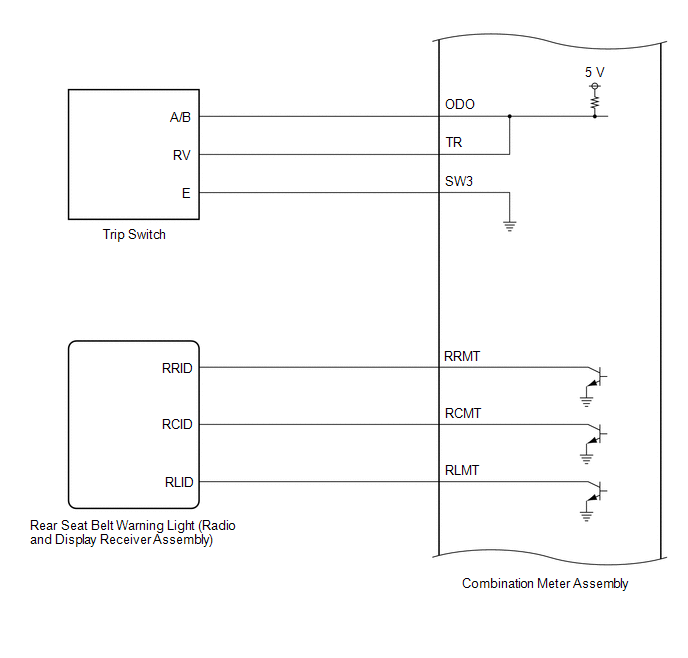

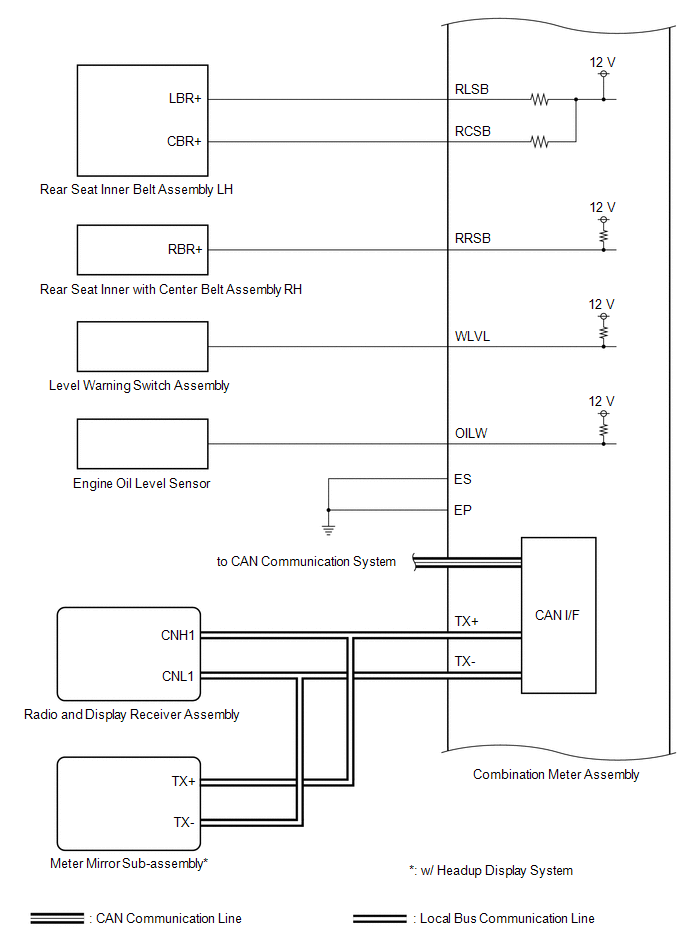

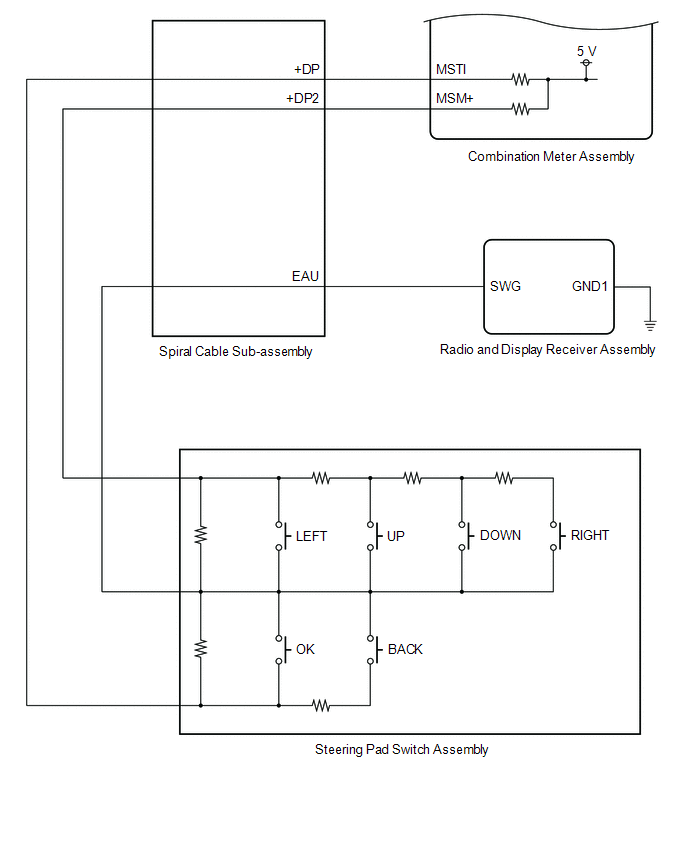

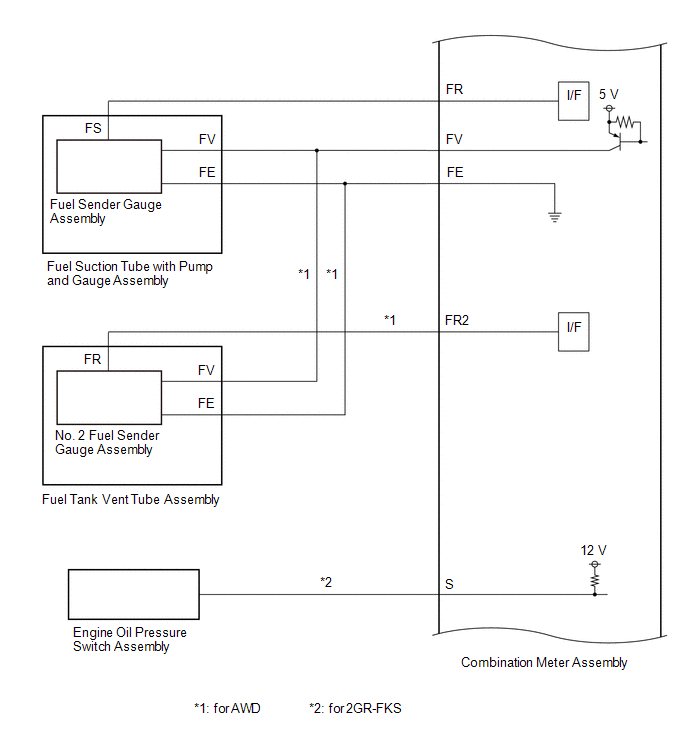

1. COMBINATION METER ASSEMBLY DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. TURN SIGNAL LIGHT DIAGRAM

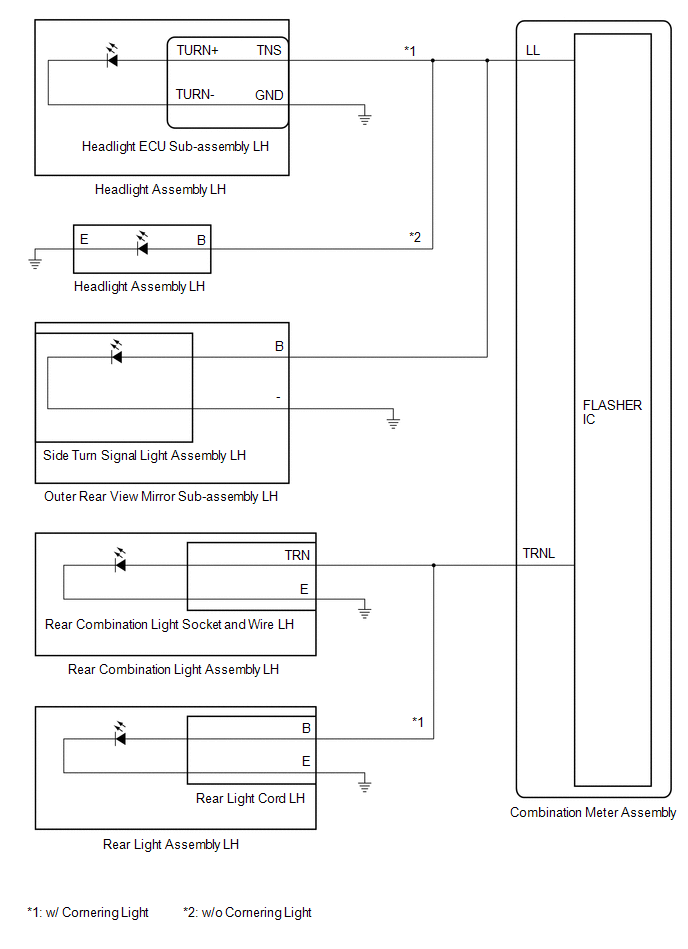

   1. LH Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

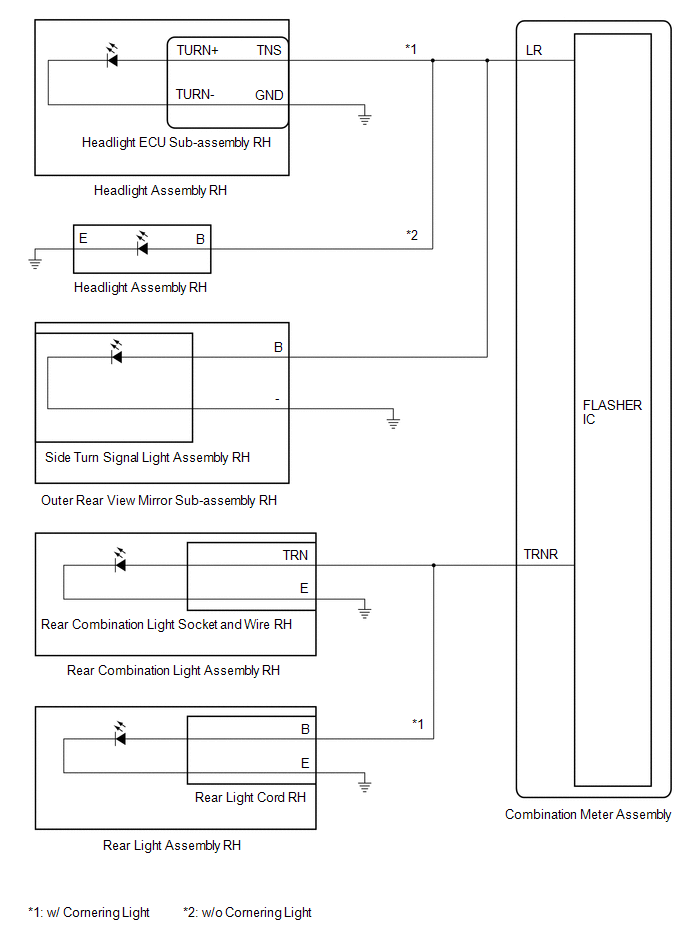

   2. RH Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

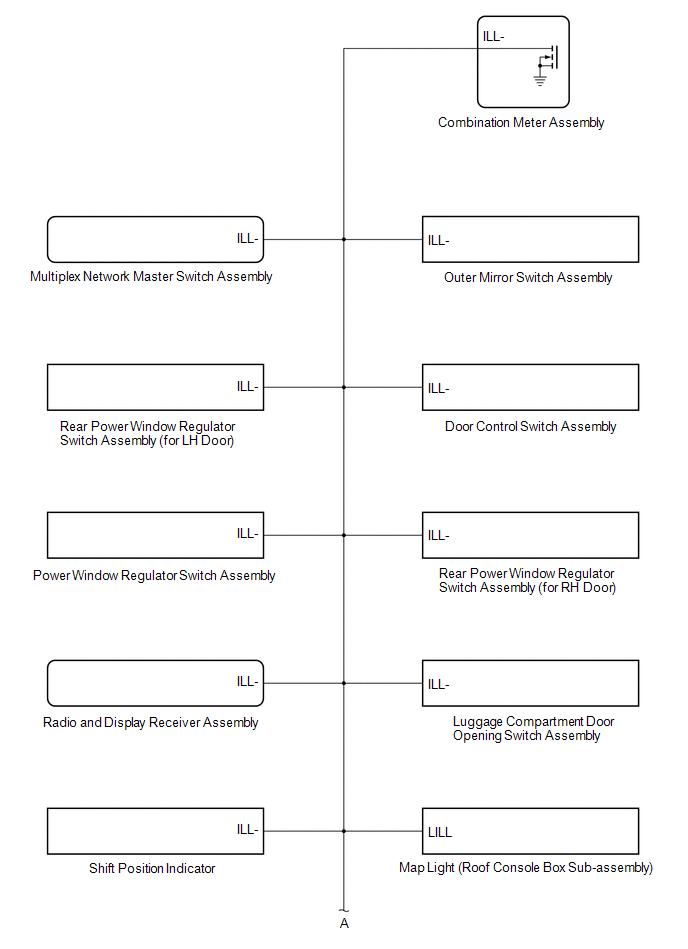

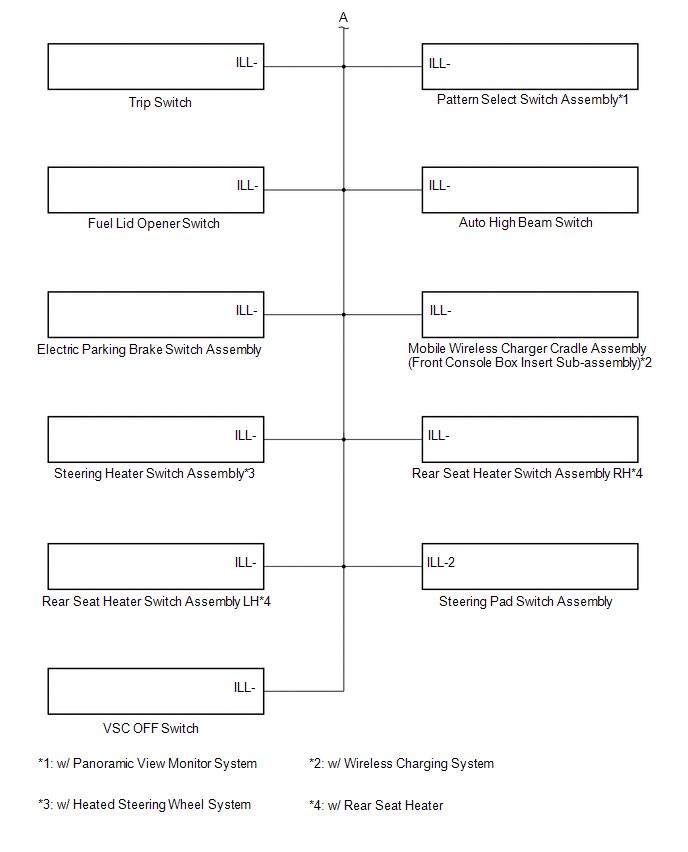

3. ILLUMINATION DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

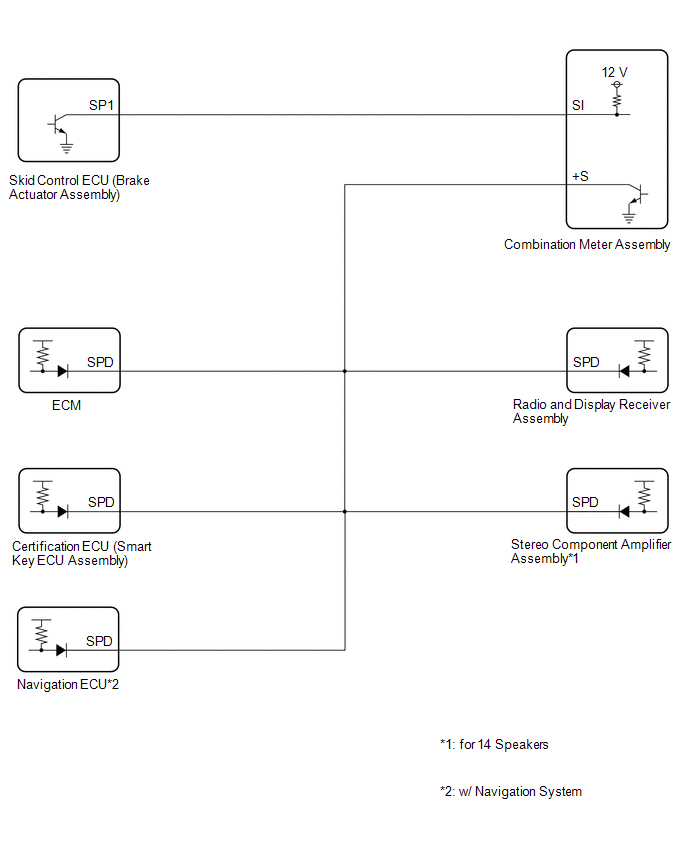

4. SPEED SIGNAL DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
