Removal [08/2021 -]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2018 -]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [08/2021 -]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  4. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

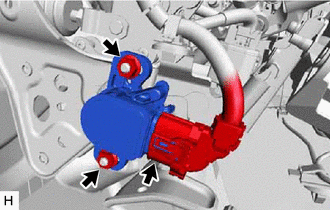

    1. Disconnect the connector from the brake pedal stroke sensor assembly.
      GTY744095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and brake pedal stroke sensor assembly from the brake pedal support assembly.
      NOTE:
      • Do not drop the brake pedal stroke sensor assembly.
      • If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
