VACUUM WARNING SWITCH (for Gasoline Model)
>>
Components [04/2018 -]
Components [04/2018 -]

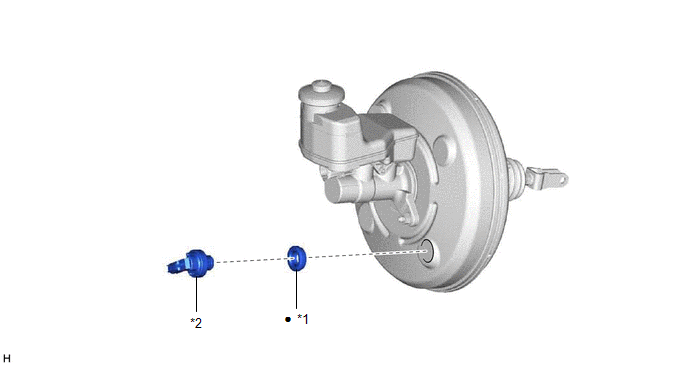

Fig 1: Vacuum Warning Switch (For Gasoline Model) Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CHECK VALVE GROMMET
*2
VACUUM WARNING SWITCH ASSEMBLY
•
Non-reusable part
-
-
