Removal [04/2018 -]: Procedure

  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [04/2018 -]

  2. REMOVE NO. 2 SURGE TANK STAY

    Refer to PROCEDURE - Step 10 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 -]

  3. SEPARATE ENGINE WIRE
    1. Remove the 2 bolts and separate the engine wire.
      GTY768992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and separate the earth wire.
      GTY742535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT AIR TUBE
    1. Slide the clip and disconnect the air tube from the vacuum pump assembly.
      GTY742534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

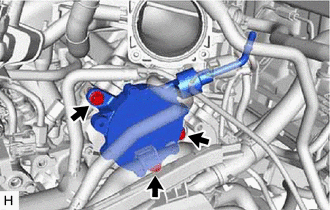

  5. REMOVE VACUUM PUMP ASSEMBLY
    1. Remove the 3 bolts and vacuum pump assembly from the engine assembly.
      GTY742537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the vacuum pump assembly.
      GTY637333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
