Installation [04/2018 - ]: Procedure

  1. INSTALL REAR SEATBACK LOCK ASSEMBLY LH
    1. Install the rear seatback lock assembly LH with the 2 nuts.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

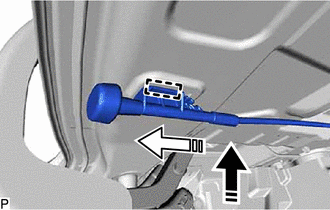

    2. Engage the guide to connect the rear seatback lock assembly LH as shown in the illustration.
      GTY876413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  2. INSTALL REAR SEATBACK LOCK ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL ROOM PARTITION BOARD RH
    1. Engage the 5 clips.
    2. Install the room partition board RH with the 2 clips.
  4. INSTALL ROOM PARTITION BOARD LH
    1. Engage the 4 clips and 2 claws.
    2. Install the room partition board LH with the clip.
  5. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 6 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - ]

  6. INSTALL REAR SEAT SHOULDER BELT COVER

    Refer to PROCEDURE - Step 7 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - ]

  7. INSTALL ROOF SIDE INNER GARNISH LH

    Refer to PROCEDURE - Step 20 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - ]

  8. INSTALL ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  9. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 21 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 19 [08/2020 - ]

  10. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  11. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  12. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 1

  13. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 9 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - ]

  14. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  15. INSTALL LUGGAGE COMPARTMENT INNER TRIM PAD (w/o Seat Heater System)
    1. Install the luggage compartment inner trim pad.
  16. INSTALL CENTER STOP LIGHT SET

    Refer to INSTALLATION [04/2018 - ]

  17. INSTALL REAR SEAT ASSEMBLY

    Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]
