Installation [04/2018 - 08/2021]: Procedure

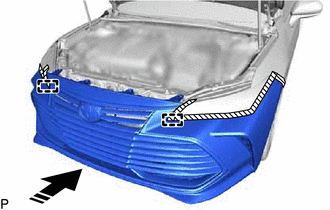

1. Move the front bumper assembly into position and engage the 2 guides as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

2. Install the 4 bolts.
3. w/ Intuitive Parking Assist System:
   1. Connect the connector.
4. Connect the connector.

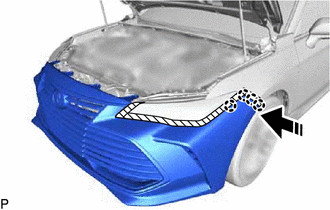

5. Engage the 4 claws as shown in the illustration.

   HINT:

   Use the same procedure for the RH side and LH side.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

6. Install the 8 screws.
7. Install the screw.

   HINT:

   Use the same procedure for the RH side and LH side.

8. Install the front bumper assembly with the 2 clips.

   HINT:

   Use the same procedure for the RH side and LH side.

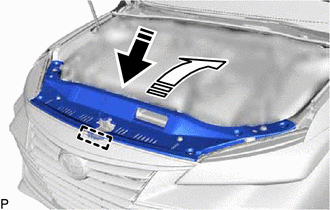

1. Engage the guide as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

2. Install the cool air intake duct seal with the 7 clips.

for HV Model:

Refer to CALIBRATION [04/2018 - ]

for Gasoline Model:

Refer to CALIBRATION [04/2018 - ]

for HV Model:

Refer to CALIBRATION [04/2018 - ]

for Gasoline Model:

Refer to CALIBRATION [04/2018 - ]

HINT:

Perform this procedure only when the front bumper reinforcement has been replaced.

Refer to ADJUSTMENT [04/2018 - ]
