Home >> Toyota >> 2020 >> Avalon Limited >> Repair and Diagnosis >> Accessories & Equipment >> Warning Systems >> Seat Belt Warning System - Diagnostics & Symptom Tests (Except Hybrid) >> SEAT BELT WARNING SYSTEM (for Gasoline Model) >> Symptom Tests >> Front Passenger Side Seat Belt Warning Light does not Operate [04/2018 - ] >> Wiring Diagram

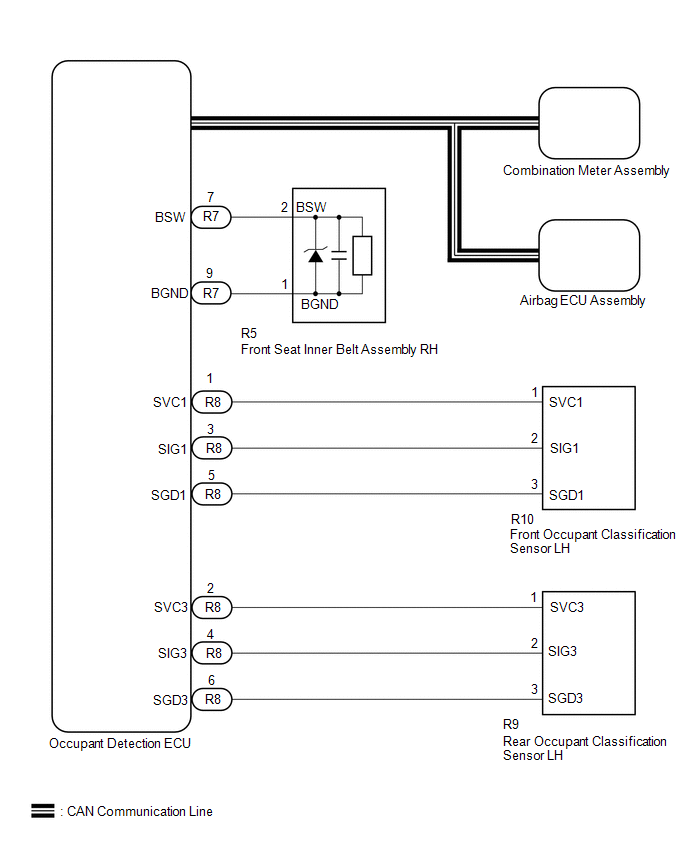

Front Passenger Side Seat Belt Warning Light does not Operate [04/2018 - ]: Wiring Diagram

GTY937807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
