Installation [04/2018 -]: Procedure

1. w/o Navigation System:
   NOTE:

   • When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:
     • A communication malfunction DTC may be stored.
     • The radio and display receiver assembly may not operate normally.

   for Gasoline Model: Refer to PRECAUTION [04/2018 - 08/2021] , or refer to PRECAUTION [08/2021 -]

   for HV Model: Refer to PRECAUTION [04/2018 - 08/2021] , or refer to PRECAUTION [08/2021 -]

2. w/ Navigation System:
   NOTE:

   • When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
     • A communication malfunction DTC may be stored.
     • The radio and display receiver assembly or navigation ECU may not operate normally.
   • After replacing the radio and display receiver assembly, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the navigation ECU.

   for Gasoline Model: Refer to PRECAUTION [04/2018 - 08/2021] , or refer to PRECAUTION [08/2021 -]

   for HV Model: Refer to PRECAUTION [04/2018 - 08/2021] , or refer to PRECAUTION [08/2021 -]

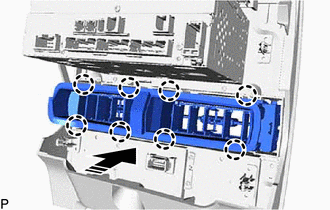

1. Engage the 8 claws to install the No. 2 instrument panel register assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

1. Install the No. 2 radio receiver bracket with the 4 screws.

1. Install the No. 1 radio receiver bracket with the 4 screws.

Refer to PROCEDURE - Step 1

1. Connect each connector.

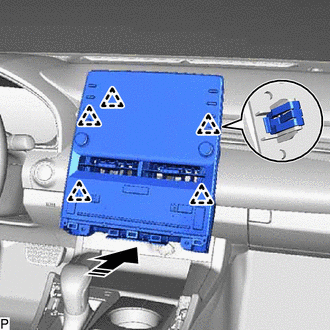

2. Engage the 5 clips to temporarily install the radio and display receiver assembly with bracket as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

3. Install the radio and display receiver assembly with bracket with the 4 bolts.

Refer to PROCEDURE - Step 41

Refer to PROCEDURE - Step 42

Refer to PROCEDURE - Step 7 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 -]

Refer to PROCEDURE - Step 8 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 -]

Refer to PROCEDURE - Step 9 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 -]

Refer to PROCEDURE - Step 10 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 -]

Refer to PROCEDURE - Step 11 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 11 [08/2020 -]
