Removal [04/2018 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021] , or refer to REMOVAL [08/2021 - ]

  2. REMOVE HEADLIGHT ASSEMBLY
    1. Apply protective tape around the headlight assembly as shown in the illustration.

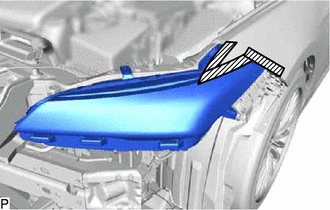

      GTY866985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. w/o Cornering Light:
      1. Remove the bolt (A), bolt (B) and 3 screws.

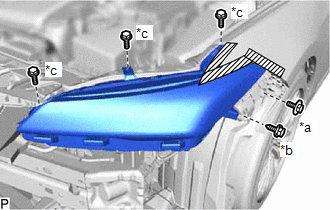

        GTY908606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bolt (A)
        *b Bolt (B)
        *c Screw
      2. Disengage the guide to separate the headlight assembly as shown in the illustration.

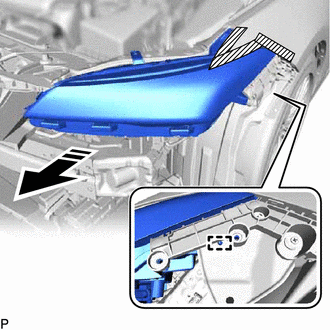

        GTY913932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      3. Disconnect the connector to remove the headlight assembly.
    3. w/ Cornering Light:
      1. Disengage the claw, pull down the connector lock lever as shown in the illustration and disconnect the connector.

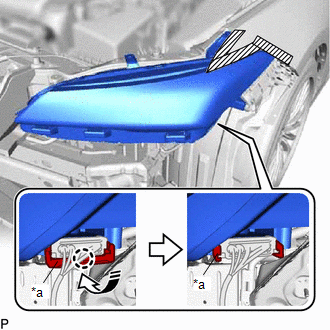

        GTY871688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Connector Lock Lever
        Disconnect in this Direction
      2. Remove the bolt (A), bolt (B) and 3 screws.
        GTY908606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bolt (A)
        *b Bolt (B)
        *c Screw
      3. Disengage the guide to remove the headlight assembly as shown in the illustration.
        GTY913932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
