Removal [04/2018 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - ]

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

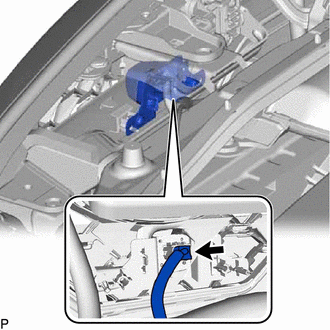

    1. Disconnect the connector.
      GTY919694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

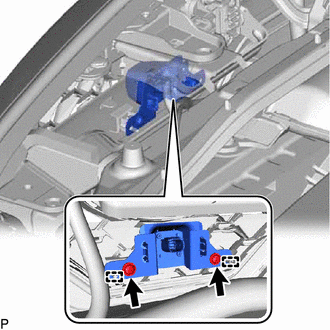

    2. Remove the 2 screws.
      GTY919693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the front television camera assembly.
