Removal [08/2020 - 08/2021]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [08/2020 - 08/2021]

  2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021]

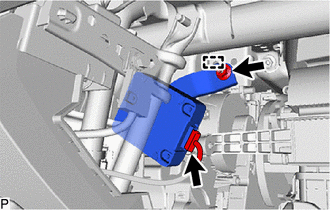

  3. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER
    1. Remove the nut.
      GTY990329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.
    3. Disconnect the connector to remove the vehicle approaching speaker controller.
