Removal [12/2015 - ]: Procedure

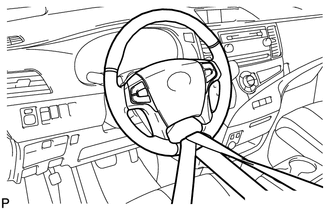

1. Secure the steering wheel with the seat belt in order to prevent it from rotating.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   This operation is necessary to prevent damage to the spiral cable.

(Refer to REMOVAL [12/2015 - ] )

(Refer to REMOVAL [12/2015 - ] )

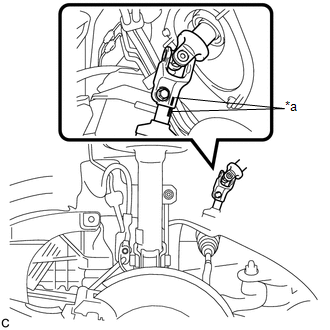

1. Put matchmarks on the steering intermediate shaft assembly and steering link assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Matchmark

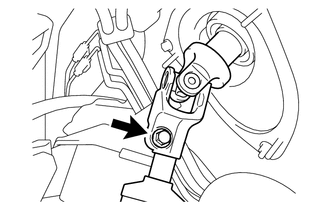

2. Remove the bolt. and separate the steering intermediate shaft assembly from the steering link assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

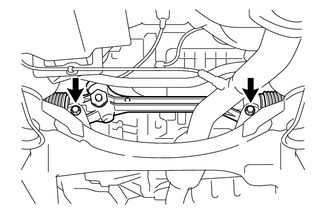

1. Remove the 2 bolts and 2 nuts and steering link assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

2. Pull out the steering link assembly towards the left side of the vehicle.

1. Put matchmarks on the tie rod assembly LH and steering gear assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Matchmark

2. Loosen the lock nut, and remove the tie rod assembly LH and lock nut.

HINT:

Perform the same procedure as for the LH side.
