Installation [08/2016 - ]: Procedure

1. Coat 2 new transaxle case gaskets with ATF and install them to the automatic transaxle case sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transaxle Case Gasket
   *2	No. 1 Front Oil Pump Cover Gasket
   *3	No. 2 Front Oil Pump Cover Gasket

2. Coat a new transaxle case gasket with ATF and install it to the counter drive gear sub-assembly.
3. Coat a new No. 1 front oil pump cover gasket with ATF and install it to the front oil pump assembly.
4. Coat a new No. 2 front oil pump cover gasket with ATF and install it to the front oil pump assembly.

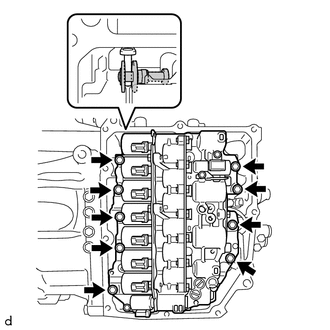

5. Align the slit portion of the manual valve and the Manual valve lever sub-assembly as shown in the illustration, and install the Transmission valve body assembly to the automatic transaxle case sub-assembly with the 9 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

   NOTE:

   Be careful that the revolution sensor wire (NC) is not pinched

6. Engage the clamp to connect the revolution sensor wire connector (NC).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Do not let wire revolution sensor wire (NC) ride up over this area.

   NOTE:

   To prevent it from being pinched between the transmission valve body assembly and the transmission case cover side, do not let the revolution sensor wire (NC) ride up over the area shown in the illustration.
