Installation [08/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSMISSION WIRE
    1. Apply a light coat of ATF to the O-ring of the transmission wire.
      GTY699982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transmission wire to the automatic transaxle case sub-assembly with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      GTY699983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the transmission revolution sensor (NT) connector and transmission revolution sensor (NC) connector.
      GTY694186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the temperature sensor to the transmission valve body assembly with the bolt and temperature sensor clamp.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

      NOTE:

      To prevent it from being pinched between the transmission valve body assembly and the transmission case cover side, pass the revolution sensor wire (NC) under the transmission wire (temperature sensor wire) as shown in the illustration.

      GTY691973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Wire (Temperature Sensor Wire)
      *2 Revolution Sensor Wire (NC)
      GTY732594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the 9 shift solenoid valve connectors.
      GTY700011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Engage the clamp to the transmission valve body assembly.
      NOTE:
      GTY732262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Do not let transmission wire protrude into this area.
      • To prevent it from being pinched between the transmission valve body assembly and the transmission case cover side, do not let the transmission wire ride up over the area shown in the illustration.
      • To prevent it from being pinched between the transmission case cover side and the automatic transaxle case sub-assembly, do not let the transmission wire protrude toward the transmission case cover side installation surface.
  2. INSTALL TRANSMISSION CASE SIDE COVER (for TMC Made)

    HINT:

    TMC (TOYOTA) Made and AW (AISIN AW) Made components can be identified by the differing locations where the serial number is stamped.

    GTY718769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a TMC Made
    *b AW Made
    1. Clean the transmission case side cover installation surface of the automatic transaxle case sub-assembly.
      GTY740352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Area to be cleaned
      NOTE:

      Completely remove any oil or grease from the contact surfaces of the automatic transaxle case sub-assembly.

    2. Clean the 3 bolt holes shown in the illustration.
      GTY735331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply adhesive to 2 or 3 threads on the end of the bolt (A) and 2 bolts (D).

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      Make sure to install the bolts immediately after applying adhesive to prevent foreign matter from attaching to them.

      GTY708679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      HINT:

      The bolt (A) and 2 bolts (D) are in the locations shown in the following step.

    4. Temporarily install a new transmission case side cover to the automatic transaxle case sub-assembly with the 2 bolts ((A) and (B)).
      GTY707697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Bolt (A) is an adhesive-coated bolt.
      • To avoid damaging the gasket, prevent it from contacting the surrounding area during installation procedures.
    5. Temporarily install the 6 bolts (C) and 2 bolts (D).
      NOTE:

      Bolt (D) is an adhesive-coated bolt.

    6. Operate the engine support bridge and the jack to lower the engine and automatic transaxle assembly.
    7. Fully tighten the 10 bolts in the order shown in the illustration.
      Fig 1: Tightening Sequence Of Transmission Case Side Cover Bolts
      GTY699371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length

      Specified tightening torque for Bolt (A) and Bolt (D)

      Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)

      Specified tightening torque for Bolt (B) and Bolt (C)

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      HINT:

      • If a socket wrench will not fit, use a union nut wrench.
      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [08/2016 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)) Bolt (A) and Bolt(D):

        5.7 N*m (58 kgf*cm, 50 in.*lbf)

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)) Bolt (B) and Bolt (C):

        6.2 N*m (63 kgf*cm, 55 in.*lbf)

    8. Tighten the engine mounting insulator LH with the nut.

      Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

    9. Tighten the front engine mounting insulator assembly with the bolt.

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

    10. Connect the transmission wire connector.
  3. INSTALL TRANSMISSION CASE SIDE COVER (for AISIN AW Made)

    HINT:

    TMC (TOYOTA) Made and AW (AISIN AW) Made components can be identified by the differing locations where the serial number is stamped.

    GTY718769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a TMC Made
    *b AW Made
    1. Clean the transmission case side cover installation surface of the automatic transaxle case sub-assembly.
      GTY740352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Area to be cleaned
      NOTE:

      Completely remove any oil or grease from the contact surfaces of the automatic transaxle case sub-assembly.

    2. Temporarily install a new transmission case side cover to the automatic transaxle case sub-assembly with the 2 bolts (A and B).
      GTY707700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To avoid damaging the gasket, prevent it from contacting the surrounding area during installation procedures.

    3. Temporarily install the 8 bolts (C).
    4. Operate the engine support bridge and the jack to lower the engine and automatic transaxle assembly.
    5. Fully tighten the 10 bolts in the order shown in the illustration.
      GTY699371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length

      Specified tightening torque

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      HINT:

      • If a socket wrench will not fit, use a union nut wrench.
      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [08/2016 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        6.2 N*m (63 kgf*cm, 55 in.*lbf)

    6. Tighten the engine mounting insulator LH with the nut.

      Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

    7. Tighten the front engine mounting insulator assembly with the bolt.

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

    8. Connect the transmission wire connector.
  4. INSTALL OIL COOLER UNION SUB-ASSEMBLY

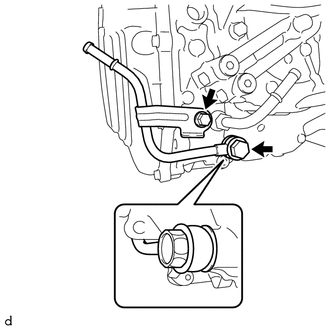

    1. Pass the oil cooler union sub-assembly through 2 gaskets and temporarily install it to the automatic transaxle case sub-assembly.
      GTY700004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the oil cooler union sub-assembly bracket portion to the automatic transaxle case sub-assembly with the bolt.
    3. Fully tighten the union bolt.

      Torque: 22.6 N*m (230 kgf*cm, 17 ft.*lbf)

    4. Fully tighten the bracket portion bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  5. CONNECT NO. 1 TRANSMISSION OIL COOLER HOSE

    See step  2

  6. CONNECT NO. 2 OUTLET OIL COOLER HOSE

    See step  3

  7. REMOVE ENGINE SUPPORT BRIDGE
    1. Remove SST from the vehicle body.
      NOTE:

      Prevent SST from contacting the vehicle body or windshield glass.

  8. REMOVE ENGINE HANGER
    1. Remove the 2 bolts and No. 2 engine hanger from the cylinder head LH.
    2. Remove the bolt, SST (collar) and No. 1 engine hanger from engine hanger attachment.
    3. Remove the 2 bolts and SST (engine hanger attachment) from cylinder head RH.
  9. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install the wire harness clamp bracket to the cylinder head RH with the bolt.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

    2. Engage the hose clamp and 3 wire harness clamps.
    3. Connect the air fuel ratio sensor (for Bank 1) connector.
  10. INSTALL AIR SURGE TANK TO INTAKE MANIFOLD GASKET

    Refer to PROCEDURE - Step 10

  11. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 11

  12. CONNECT PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 12

  13. CONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 13

  14. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  15. INSTALL FRONT SUSPENSION MEMBER DYNAMIC DAMPER

    Refer to PROCEDURE - Step 8

  16. INSTALL TRANSMISSION OIL THERMOSTAT

    See step  4

  17. INSTALL VACUUM SURGE TANK WITH BRACKET
    1. Install the vacuum surge tank with bracket to the front engine mounting bracket with the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Connect the 2 vacuum hose sub-assembly to the vacuum surge tank.
      GTY699404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark

      HINT:

      Align the paint mark of the vacuum surge tank and hose sub-assembly.

  18. INSTALL DUTY VACUUM SWITCHING VALVE

    Refer to PROCEDURE - Step 1

  19. INSTALL AIR CLEANER BRACKET

    Refer to PROCEDURE - Step 63

  20. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 64

  21. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 65

  22. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  23. INSTALL AIR CLEANER INLET ASSEMBLY

    Refer to PROCEDURE - Step 67

  24. INSTALL BATTERY

    Refer to PROCEDURE - Step 68

  25. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 94

  26. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  27. INSTALL WINDSHIELD WIPER MOTOR AND LINK

    Refer to INSTALLATION [12/2015 - ]

  28. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 11/2017] Refer to INITIALIZATION [11/2017 - ]

  29. ADJUST AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [08/2016 - ]

  30. INSPECT FOR AUTOMATIC TRANSAXLE FLUID LEAK
  31. CHECK AUTOMATIC TRANSAXLE SYSTEM
  32. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 95

  33. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 15

  34. INSTALL FRONT WHEEL LH

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
