Installation [08/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Pass the transmission control cable from the cabin into the engine compartment.
    2. Install the transmission control cable with the 3 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Install a new clip onto the control cable bracket.
      GTY700043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Claw A
      *2 Claw B
      *3 Transmission Control Cable
    4. Install the transmission control cable onto the transmission control cable bracket.
      NOTE:
      • Make sure that the claws A (*1) on the clip are securely fit into the bracket holes.
      • Make sure that the cable is securely installed inside of the claws B (*2) of the clip.
      • After installation, lightly jiggle the transmission control cable and make sure that it does not come loose from the transmission control cable bracket.
    5. Check that the park/neutral position switch is in the N position.
    6. Install the transmission control cable assembly to the control shaft lever.

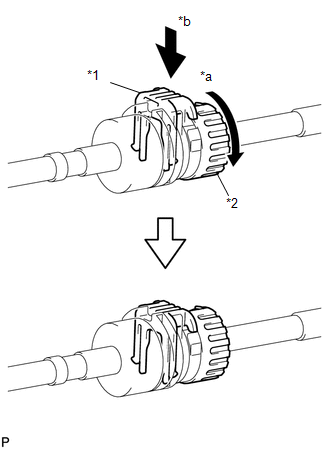

    7. Rotate the transmission control cable nut counterclockwise approximately 270° and, while holding the nut in that position, press in the stopper until it makes 2 "click" sounds.
      GTY702009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stopper
      *2 Nut
      *a Turn
      *b Push
    8. Push the lock piece up from the back side of the adjuster case while pinching the claws on the lock piece.
      GTY709017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Adjuster Case
      *2 Claw
      *3 Lock Piece
    9. Connect the cable outer of the transmission control cable onto the shift lever retainer, check that the position of the spring is the same as A shown in the illustration, and press in the stopper.
      GTY688138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the stopper cannot be pressed in, slightly rotate the nut clockwise and then press in the stopper.

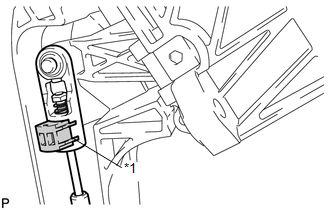

    10. Connect the transmission control cable end to the shift lever.
      GTY727940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Piece
      NOTE:

      Check that the lock piece is pulled up.

  2. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Install the front No. 1 floor heat insulator to the body with the 2 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 9

  4. INSTALL AIR CLEANER BRACKET

    Refer to PROCEDURE - Step 63

  5. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 64

  6. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 65

  7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  8. INSTALL AIR CLEANER INLET ASSEMBLY

    Refer to PROCEDURE - Step 67

  9. INSTALL FRONT AIR CONDITIONING UNIT

    Refer to INSTALLATION [08/2016 - ]

  10. INSTALL BATTERY

    Refer to PROCEDURE - Step 68

  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 11/2017] Refer to INITIALIZATION [11/2017 - ]

  12. INSPECT SHIFT LEVER POSITION

    See step  1
