Components [08/2016 - ]
WARNING: This page is about a different variant/trim than selected.

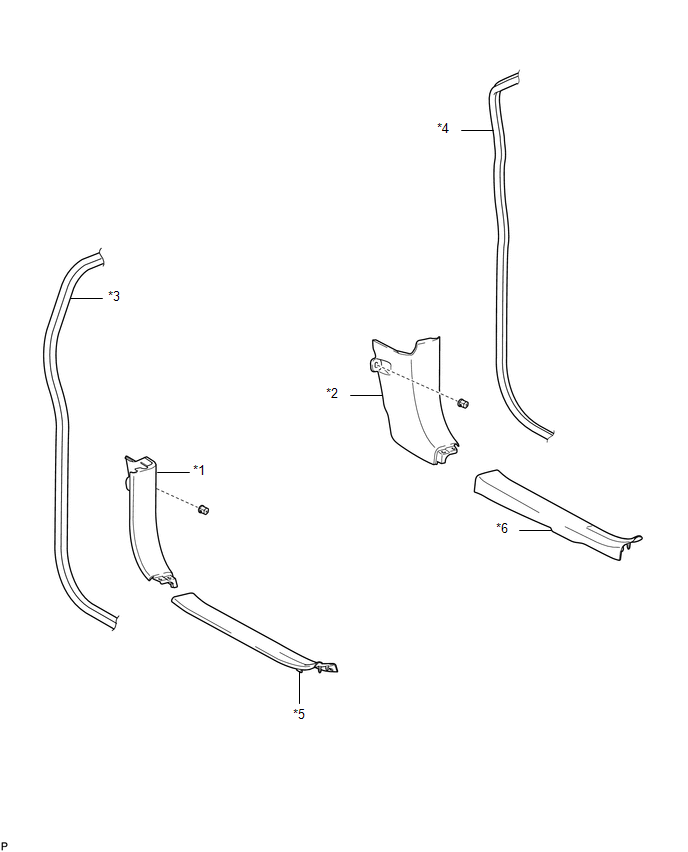

| *1 | COWL SIDE TRIM BOARD LH | *2 | COWL SIDE TRIM BOARD RH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | FRONT DOOR SCUFF PLATE LH | *6 | FRONT DOOR SCUFF PLATE RH |
| *A | w/ Console Box | *B | w/o Console Box |

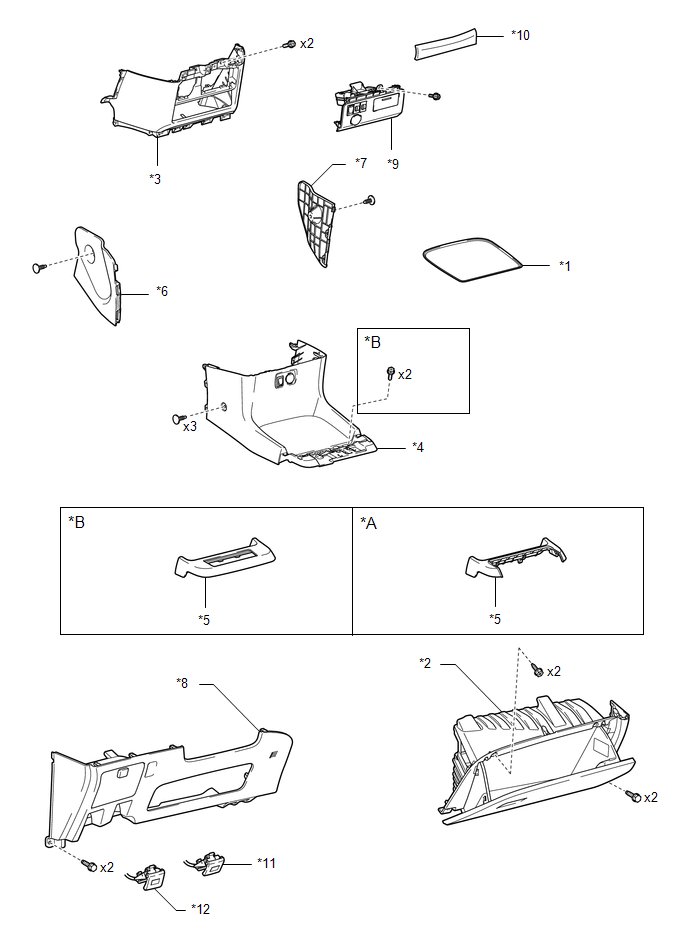

| *1 | BOX BOTTOM MAT | *2 | GLOVE COMPARTMENT DOOR SUB-ASSEMBLY |
| *3 | INSTRUMENT CLUSTER FINISH CENTER PANEL ASSEMBLY | *4 | INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY |
| *5 | INSTRUMENT LOWER CENTER COVER | *6 | INSTRUMENT PANEL FINISH PANEL END LH |
| *7 | INSTRUMENT PANEL FINISH PANEL END RH | *8 | NO. 1 INSTRUMENT PANEL LOWER FINISH PANEL |
| *9 | NO. 1 SWITCH HOLE BASE | *10 | NO. 2 SWITCH HOLE BASE |
| *11 | HOOD LOCK CONTROL LEVER | *12 | FUEL LID LOCK OPEN LEVER |
| Callout | Description | Callout | Description |

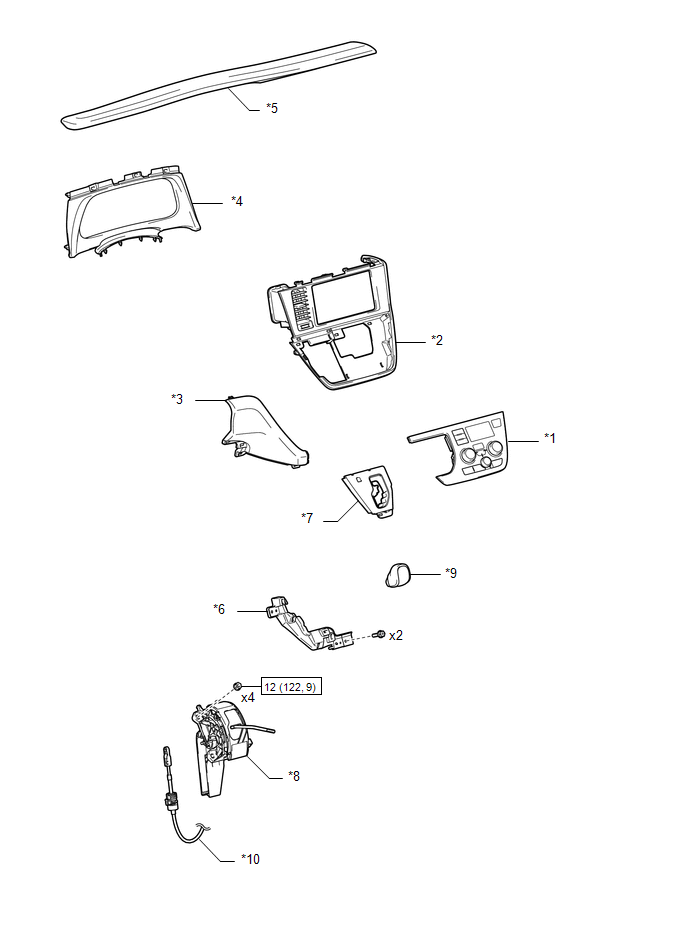

| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *3 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | *4 | NO. 1 INSTRUMENT CLUSTER FINISH PANEL |
| *5 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *6 | NO. 1 INSTRUMENT PANEL SAFETY PAD RETAINER |
| *7 | POSITION INDICATOR HOUSING ASSEMBLY | *8 | SHIFT LEVER ASSEMBLY |
| *9 | SHIFT LEVER KNOB SUB-ASSEMBLY | *10 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

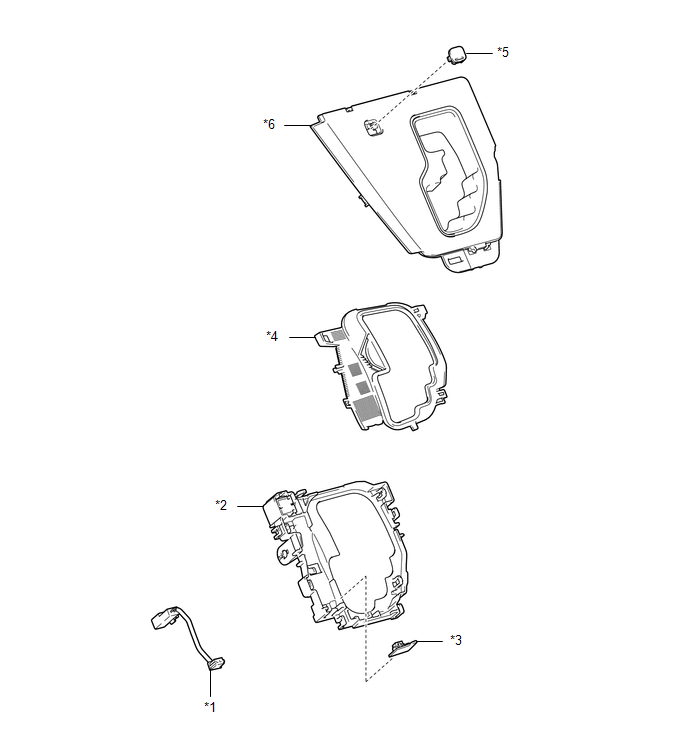

| *1 | INDICATOR LIGHT WIRE SUB-ASSEMBLY | *2 | LOWER NO. 2 POSITION INDICATOR HOUSING |
| *3 | POSITION INDICATOR LED | *4 | POSITION INDICATOR LIGHT GUIDE |
| *5 | SHIFT LEVER CAP | *6 | FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY |

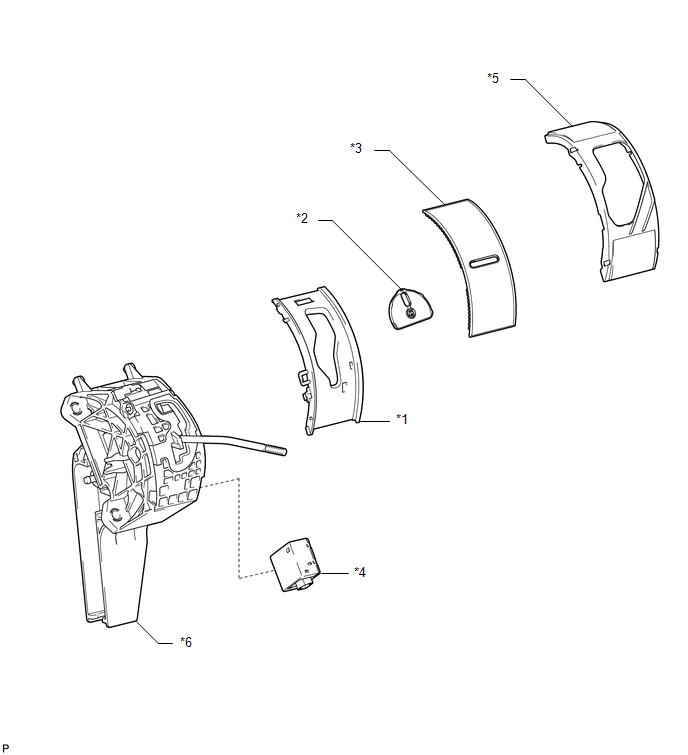

| *1 | LOWER POSITION INDICATOR HOUSING | *2 | NO. 2 POSITION INDICATOR SLIDE COVER |
| *3 | POSITION INDICATOR SLIDE COVER | *4 | SHIFT LOCK CONTROL ECU SUB-ASSEMBLY |
| *5 | UPPER POSITION INDICATOR HOUSING | *6 | SHIFT LOCK CONTROL UNIT ASSEMBLY |
