Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL TANK BAND
    1. Install the 3 fuel tank bands with the 6 clips.
  2. INSTALL FUEL TANK CUSHION
    1. Install the 6 fuel tank cushions.
  3. INSTALL NO. 2 FUEL TANK CUSHION
    1. Install the 2 No. 2 fuel tank cushions.
  4. INSTALL FUEL TANK SIDE PLATE
    1. Install the fuel tank side plate and fuel tank bracket sub-assembly with the nut and bolt.

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

  5. INSTALL FUEL TANK TO FILLER PIPE HOSE
    1. Install the fuel tank to filler pipe hose.
  6. INSTALL NO. 1 FUEL SUCTION TUBE SET GASKET
    1. Ensure gasket groove is clean and free of foreign particles.
    2. Install a new gasket onto the fuel tank.
    3. Make sure that the gasket sits in the groove.
  7. INSTALL FUEL TANK OVERFILL CHECK VALVE ASSEMBLY
    1. Align the protrusion of the fuel tank overfill check valve assembly with the cutout of the tank suction tube support and install the fuel tank overfill check valve assembly.

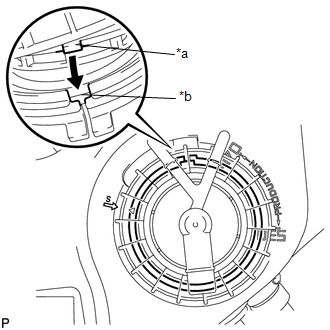

      GTY427933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protrusion
      *b Cutout
    2. Align marks on the fuel pump gauge retainer and the fuel tank.

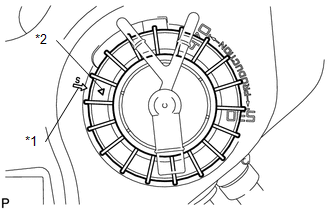

      GTY423191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Start Mark (Fuel Tank Side)
      *2 Start Mark (Retainer Side)
    3. Position the fuel pump gauge retainer on top of the fuel tank overfill check valve assembly flange while pushing down the flange on center.
    4. While holding the fuel tank overfill check valve assembly, tighten the fuel pump gauge retainer one complete turn by hand*1.
      NOTE:
      • Make sure the fuel tank overfill check valve assembly anti-rotation tab is in the groove during above operation.
      • "S" arrow on the fuel tank indicates 0 degrees position.
    5. Ensure that no cross threading occurred during installation by checking the gap between the fuel pump gauge retainer and the fuel tank. Confirm that the gap is even. If cross threading occurred, remove the fuel pump gauge retainer and repeat step*1.

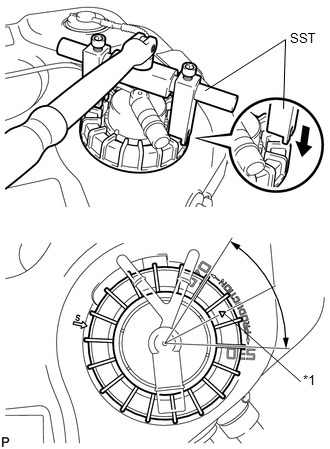

      GTY449310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Start Mark (Retainer Side)
    6. Using SST, tighten the fuel pump gauge retainer.
      • SST: 09808-14020
        1. 09808-01410
        2. 09808-01420
        3. 09808-01430
      NOTE:
      • No ratcheting effect allowed when tightening the fuel pump gauge retainer.
      • No grease or lubrication allowed on parts during installation.

      HINT:

      • Align the ribs of the fuel pump gauge retainer with the tips of SST.
    7. Install the fuel pump gauge retainer by one and a half turns so that the start mark on the fuel pump gauge retainer is between 470° and 530° from the start position.
    8. If the start mark does not reach 470°, confirm that no cross threading occurred by measuring the gap between the fuel pump gauge retainer and the fuel tank.

      If cross threading occurred, replace the fuel tank overfill check valve assembly, the gasket and the tank suction tube support.

    9. Replace the tank suction tube support.
      1. Remove the tank suction tube support from the fuel tank.

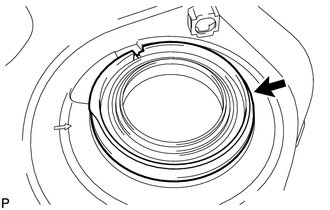

        GTY441772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the tank suction tube support to the fuel tank as shown in the illustration.

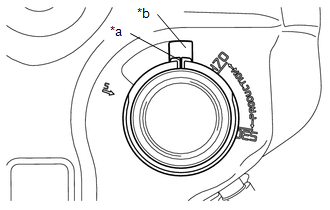

        GTY425054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Protrusion
        *b Cutout

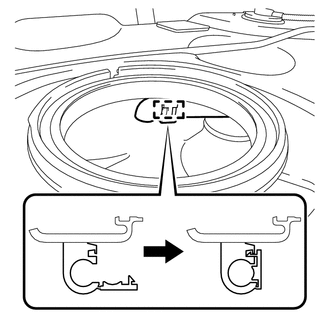

    10. Engage the hose clamp.
      GTY454296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Put a mark on the fuel pump gauge retainer and the fuel tank with paint. This will be the evidence that the fuel pump gauge retainer has been removed.

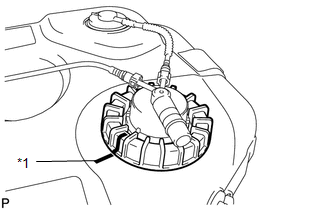

      GTY442363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Paint Mark
    12. Line up the pipe and connector and push them together until a "click" sound is heard (Refer to PRECAUTION [12/2015 - 08/2016] ).

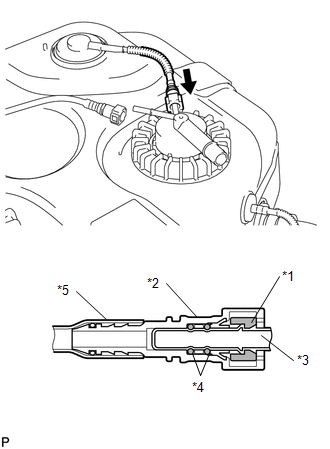

      GTY435966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      *2 Fuel Tube Connector
      *3 Fuel Pipe
      *4 O-Ring
      *5 Nylon Tube
      Push
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the tube is inserted securely.
      • Check that the tube is securely connected by pulling on it.
    13. Line up the pipe and connector and push them together until a "click" sound is heard (Refer to PRECAUTION [12/2015 - 08/2016] ).

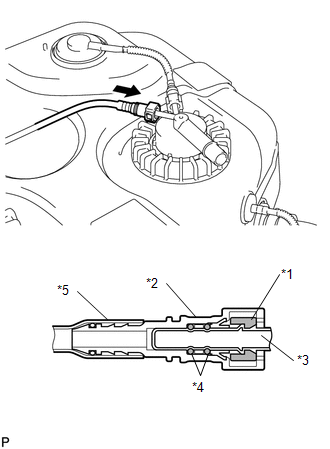

      GTY442706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      *2 Fuel Tube Connector
      *3 Fuel Pipe
      *4 O-Ring
      *5 Nylon Tube
      Push
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the tube is inserted securely.
      • Check that the tube is securely connected by pulling on it.
  8. INSTALL FUEL SUCTION TUBE SET GASKET
    1. Ensure gasket groove is clean and free of foreign particles.
    2. Install a new gasket onto the fuel tank.
    3. Make sure that the gasket sits in the groove.
  9. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
    1. Align the protrusion of the fuel suction with pump and gauge tube assembly with the cutout of the tank suction tube support and install the fuel suction with pump and gauge tube assembly.

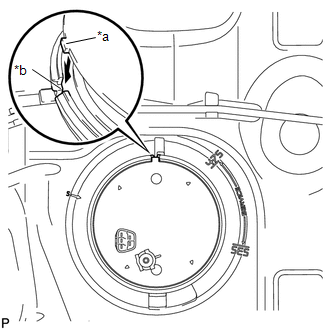

      GTY440647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protrusion
      *b Cutout
      NOTE:

      Do not bend the arm of the fuel sender gauge.

  10. INSTALL FUEL PUMP GAUGE RETAINER
    1. Align marks on the fuel pump gauge retainer and the fuel tank.

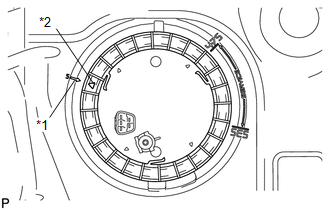

      GTY713745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Start Mark (Fuel Tank Side)
      *2 Start Mark (Retainer Side)
    2. Position the fuel pump gauge retainer on top of the fuel suction with pump and gauge tube assembly flange while pushing down the flange on center.
    3. While holding the fuel suction with pump and gauge tube assembly, tighten the fuel pump gauge retainer one complete turn by hand*1.
      NOTE:
      • Make sure the fuel suction with pump and gauge tube assembly anti-rotation tab is in the groove during above operation.
      • "S" arrow on the fuel tank indicates 0 degrees position.
    4. Ensure that no cross threading occurred during installation by checking the gap between the fuel pump gauge retainer and the fuel tank. Confirm that the gap is even. If cross threading occurred, remove the fuel pump gauge retainer and repeat step*1.

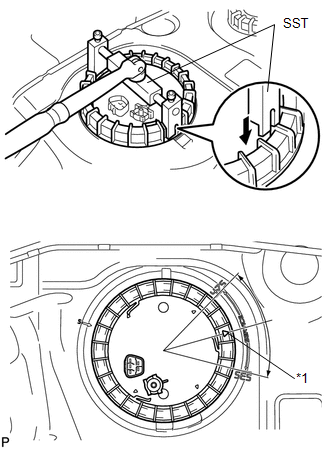

      GTY436325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Start Mark (Retainer Side)
    5. Using SST, tighten the fuel pump gauge retainer to the specified torque.
      • SST: 09808-14020
        1. 09808-01410
        2. 09808-01420
        3. 09808-01430

      Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)

      HINT:

      Align the ribs of the fuel pump gauge retainer with the tips of SST.

      NOTE:
      • No ratcheting effect allowed when tightening the fuel pump gauge retainer.
      • No grease or lubrication allowed on parts during installation.
    6. Install the fuel pump gauge retainer by one and a half turns so that the start mark on the fuel pump gauge retainer is between 475° and 535° from the start position.
    7. If the start mark does not reach 475°, confirm that no cross threading occurred by measuring the gap between the fuel pump gauge retainer and the fuel tank.

      If cross threading occurred, replace the fuel pump gauge retainer, the gasket and the tank suction tube support.

    8. Replace the tank suction tube support.
      1. Remove the tank suction tube support from the fuel tank.

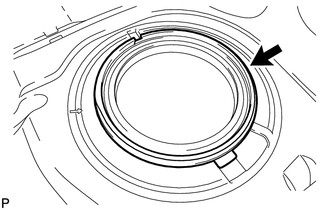

        GTY441784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the tank suction tube support to the fuel tank as shown in the illustration.

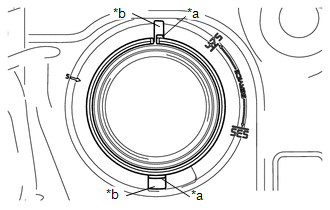

        GTY698797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Protrusion
        *b Cutout
    9. Put a mark on the fuel pump gauge retainer and the fuel tank with paint. This will be the evidence that the fuel pump gauge retainer has been removed.

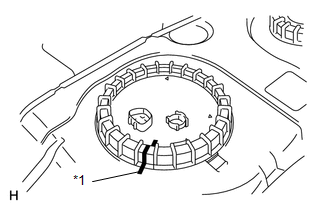

      GTY426740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Paint Mark
  11. INSTALL FUEL TANK VENT HOSE
    1. Engage the 4 clamps and install the fuel tank vent hose and hose clamp.
    2. Line up the pipe and connector and push them together until a "click" sound is heard.

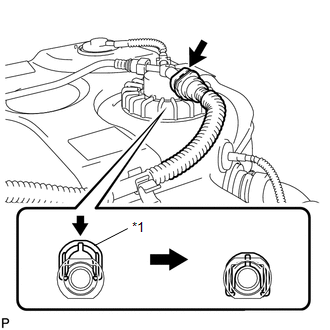

      GTY433600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
    3. Lock it by pushing in the retainer as shown in the illustration.
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the fuel tank vent hose is inserted securely.
      • After installing the retainer, check that the fuel tank vent hose is securely connected by pulling on it.

      HINT:

      The quick connector cannot be locked when the tube is not inserted securely.

  12. INSTALL CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY
    1. Engage the 4 clamps and install the charcoal canister outlet tube sub-assembly.
  13. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Engage the 4 guides and install the fuel tank main tube sub-assembly.
    2. Insert the fuel tank main tube into the fuel suction tube assembly plug and lock it with the tube joint clip.

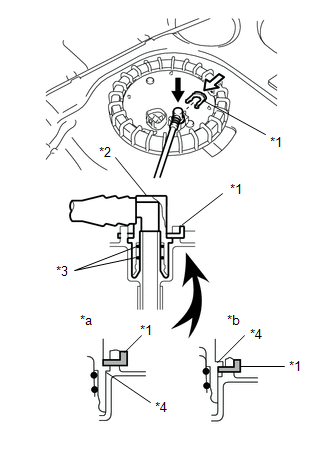

      GTY726551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Tube Joint Clip
      *2 Fuel Tube Connector
      *3 O-Ring
      *4 Collar
      *a OK
      *b NG
      Push Down
      Push
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the fuel tank main tube is inserted securely.
      • Check that the tube joint clip is on the collar of the main tube.
      • After installing the tube joint clip, check that the fuel tank main tube assembly is securely connected by pulling on it.
  14. INSTALL FUEL TANK ASSEMBLY
    1. Clean and degrease the bolt holes.
    2. Set the fuel tank and 3 fuel tank bands on the engine lifter.
    3. Slowly raise the engine lifter and install the fuel tank onto the vehicle.
      NOTE:

      Make sure that the fuel tank does not fall.

    4. While operating the engine lifter, engage the 4 guides for the wire harness and connect the fuel pump connector, then install the fuel tank and the 3 fuel tank bands to the vehicle.
    5. Tighten the 6 set bolts of the 3 fuel tank bands.

      Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

    6. Install the 2 wire harness clamps.
    7. Line up the pipe and connector and push them together until a "click" sound is heard (Refer to PRECAUTION [12/2015 - 08/2016] ).

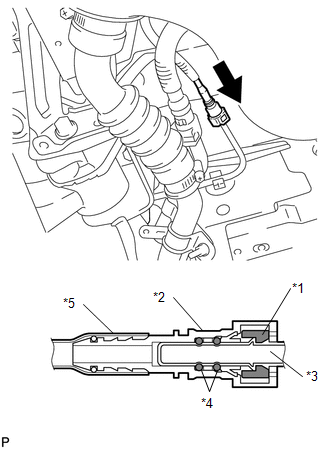

      GTY427836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      *2 Fuel Tube Connector
      *3 Fuel Pipe
      *4 O-Ring
      *5 Nylon Tube
      Push
      NOTE:
      • Check if there is any damage or foreign objects on the connected part.
      • After connecting, check if the connector and the pipe are securely connected by pulling on them.
    8. Connect the charcoal canister outlet tube (Refer to PRECAUTION [12/2015 - 08/2016] ).

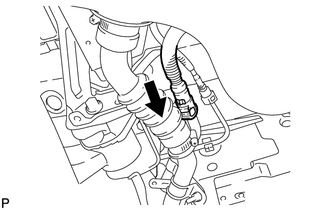

      GTY434577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Push
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the charcoal canister outlet tube sub-assembly is inserted securely.
      • Check that the charcoal canister outlet tube sub-assembly is securely connected by pulling on it.
    9. Connect the fuel tank to filler pipe hose.

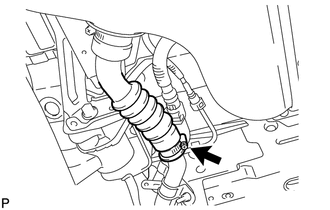

      GTY714835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Line up the pipe and connector and push them together until a "click" sound is heard (Refer to PRECAUTION [12/2015 - 08/2016] ).

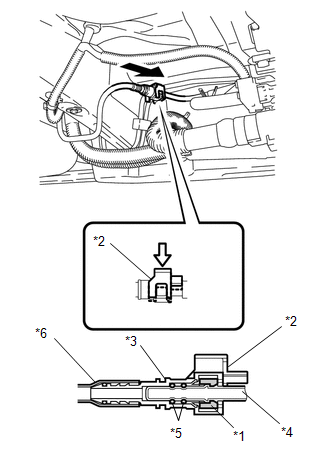

      GTY730948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Retainer
      *2 Fuel Tube Connector Cover
      *3 Fuel Tube Connector
      *4 Fuel Pipe
      *5 O-Ring
      *6 Nylon Tube
      Push
      Down
    2. Push the fuel tube connector cover in to lock it.
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the fuel tank main tube is inserted securely.
      • After installing the fuel tube connector cover, check that the fuel tank main tube is securely connected by pulling on it.
  16. CONNECT CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  17. CONNECT FUEL TANK VENT HOSE

    Refer to PROCEDURE - Step 4

  18. INSTALL NO. 1 FUEL TANK HEAT INSULATOR (for 2WD)
    1. Install the No. 1 fuel tank heat insulator with the 4 nuts.

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  19. INSTALL CENTER EXHAUST PIPE ASSEMBLY (for 2WD)
    1. Using a vernier caliper, measure the free length of the compression spring.
      GTY193446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Minimum Length

      38.86 mm (1.5299 in.)

      If the length is not as specified, replace the compression spring.

    2. Using a plastic hammer and a wooden block, tap in a new exhaust pipe gasket until its surface is flush with the front exhaust pipe assembly.
      GTY481349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Gasket
      *2 Wooden Block
      NOTE:
      • Install the gasket in the correct direction.
      • Do not reuse the gasket.
      • Do not damage the gasket by dropping it, etc.
      • Do not damage the outer surface of the gasket.
      • Do not push in the gasket with the exhaust pipe when connecting it.
    3. Install a new gasket to the center exhaust pipe assembly.
    4. Hang the center exhaust pipe assembly with the 2 exhaust pipe supports.
    5. Install the 2 compression springs and 4 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  20. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    (Refer to INSTALLATION [12/2015 - ] )

  21. ADD FUEL
  22. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  23. INSPECT FOR EXHAUST GAS LEAK
  24. INSTALL FUEL TANK FILLER HOSE COVER
    1. Install the 3 bolts and the fuel tank filler hose cover.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  25. INSTALL REAR FLOOR NO. 2 CROSSMEMBER BRACE LH
    1. Install the rear floor No. 2 crossmember brace LH with 2 bolts.

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

  26. INSTALL CHARCOAL CANISTER PROTECTOR

    Refer to PROCEDURE - Step 5

scientia non olet · About LEMON Manuals
