Replacement [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REPLACE GENERATOR DRIVE END FRAME BEARING
    1. Remove the 4 screws and the bearing retainer plate from the drive end frame.
      GTY146427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

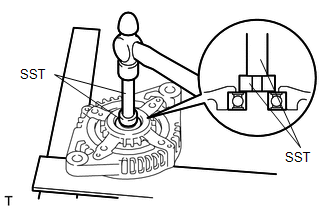

    2. Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.
      GTY697441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00250
      • SST: 09950-70010
        1. 09951-07100

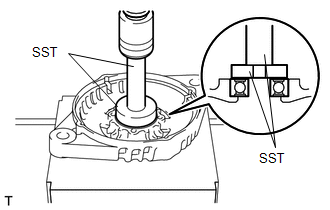

    3. Using SST and a press, press in a new generator drive end frame bearing.
      GTY724025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00470
      • SST: 09950-70010
        1. 09951-07100

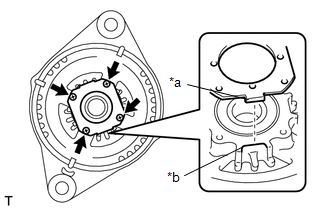

    4. Fit the tabs on the bearing retainer plate into the cutouts on the drive end frame to install the retainer plate.
      GTY716535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Tab
      *b Cutout
    5. Install the 4 screws.

      Torque: 2.3 N*m (23 kgf*cm, 20 in.*lbf)
