Components [12/2015 - 08/2016]

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

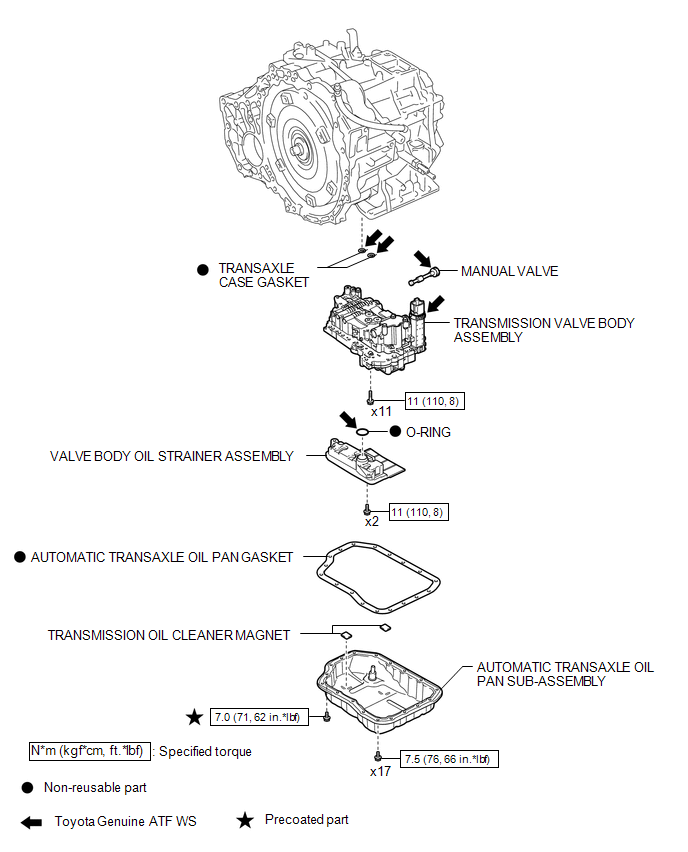

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

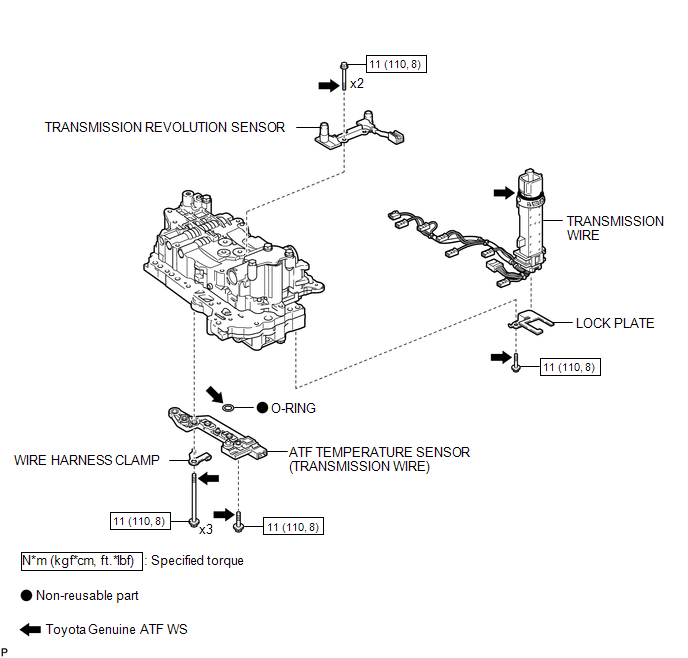

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (2 Of 3)

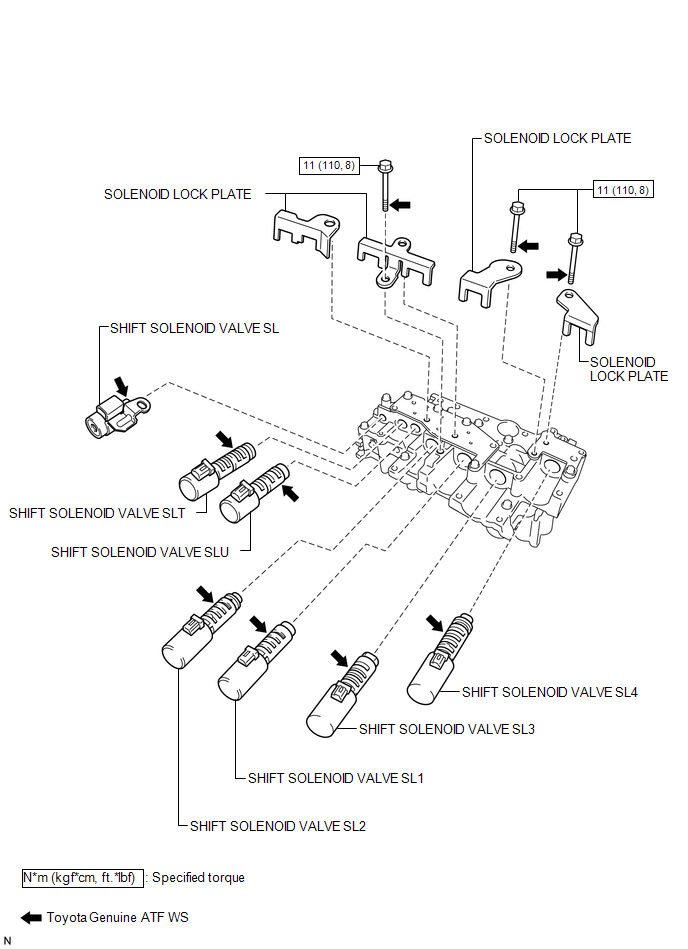

Fig 3: Valve Body Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (3 Of 3)
