Disassembly [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION REVOLUTION SENSOR

    Refer to PROCEDURE - Step 2

  2. REMOVE TRANSMISSION WIRE

    Refer to PROCEDURE - Step 2

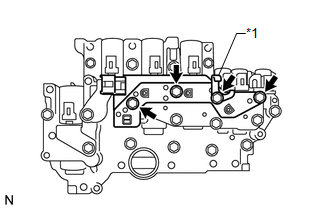

  3. REMOVE ATF TEMPERATURE SENSOR (TRANSMISSION WIRE)
    1. Remove the 4 bolts, wire harness clamp and ATF temperature sensor from the transmission valve body.
      GTY740688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Wire Harness Clamp
    2. Remove the O-ring from the ATF temperature sensor.
      GTY429277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE SL
    1. Remove the shift solenoid valve SL from the transmission valve body.
      GTY451591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

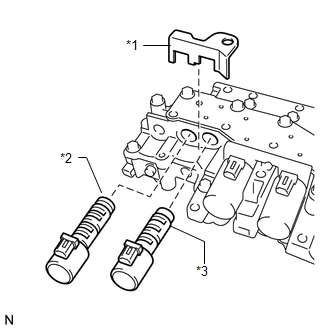

  5. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the lock plate and shift solenoid valve SLT from the transmission valve body.
      GTY685910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Plate
      *2 Solenoid Valve SLT
      *3 Solenoid Valve SLU
  6. REMOVE SHIFT SOLENOID VALVE SLU
    1. Remove the shift solenoid valve SLU from the transmission valve body.

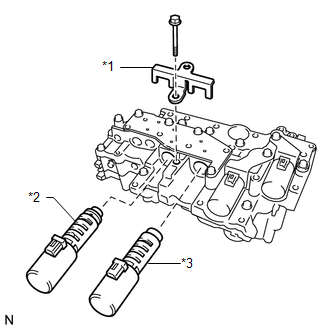

  7. REMOVE SHIFT SOLENOID VALVE SL2
    1. Remove the bolt, lock plate and shift solenoid valve SL2 from the transmission valve body.
      GTY611655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Plate
      *2 Solenoid Valve SL2
      *3 Solenoid Valve SL1
  8. REMOVE SHIFT SOLENOID VALVE SL1
    1. Remove the shift solenoid valve SL1 from the transmission valve body.

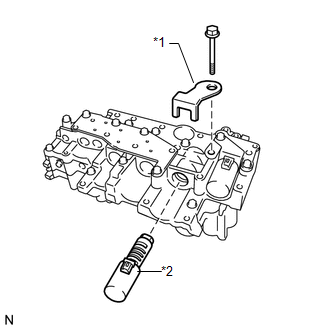

  9. REMOVE SHIFT SOLENOID VALVE SL3
    1. Remove the bolt, lock plate and shift solenoid valve SL3 from the transmission valve body.
      GTY601328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Plate
      *2 Solenoid Valve SL3
  10. REMOVE SHIFT SOLENOID VALVE SL4
    1. Remove the bolt, lock plate and shift solenoid valve SL4 from the transmission valve body.
      GTY611580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Plate
      *2 Solenoid Valve SL4
