Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2015 - 08/2016] ).
  2. REMOVE AIR CLEANER INLET ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. REMOVE BATTERY

    Refer to PROCEDURE - Step 26

  4. REMOVE TCM
    1. Turn the lock lever and disconnect the connector from the TCM.

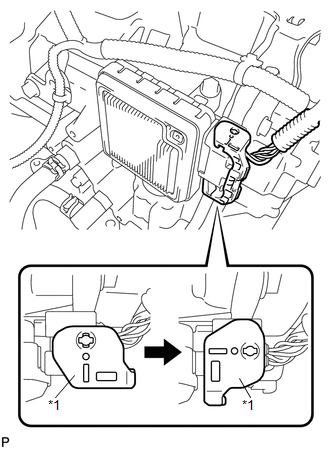

      GTY717343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Lever
    2. Remove the 2 bolts and TCM from the automatic transaxle.

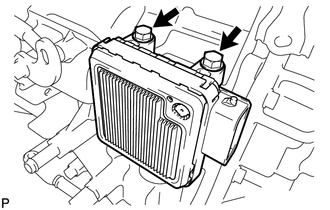

      GTY727261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
