Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Check that the park/neutral position switch and shift lever are in N position.

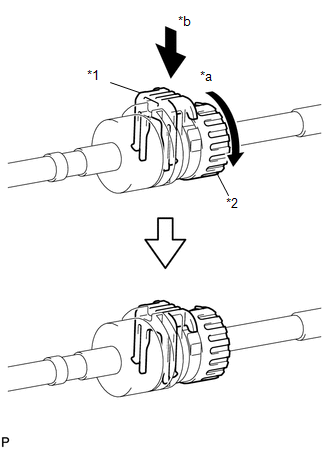

    2. Rotate the nut of the transmission control cable assembly counterclockwise approximately 270° and while holding the nut in that position, press in the stopper until it makes 2 "click" sounds.
      GTY702351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Stopper
      *2 Nut
      *a Turn
      *b Push
    3. Push the lock piece up from the back side of the adjuster case while pinching the claws on the lock piece.
      GTY709355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adjuster Case
      *2 Claw
      *3 Lock Piece

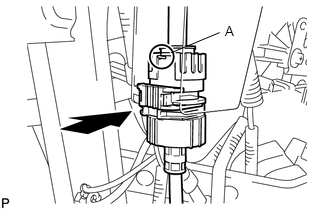

    4. Install the cable outer of the transmission control cable assembly to the shift lever retainer, check that the position of the spring is the same as A shown in the illustration, and press in the stopper.
      GTY688132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the stopper cannot be pressed in, slightly rotate the nut clockwise and then press in the stopper.

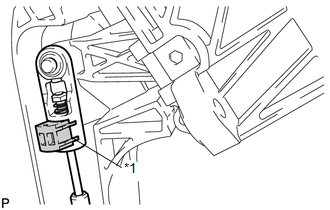

    5. Connect the end of the transmission control cable assembly to the shift lever assembly.
      GTY726941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Piece
      NOTE:

      Check that the lock piece is pulled up.

  2. INSTALL SHIFT LEVER ASSEMBLY
    1. Install the shift lever assembly to the instrument panel reinforcement with the 4 nuts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    2. Engage the clamp to install the wire harness to the shift lever assembly.
    3. Connect the shift lock control ECU connector and transmission control switch connector.
    4. Press in and lock the lock piece to the adjuster case.
      GTY723247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Piece
      *2 Adjuster Case
      *a Press in
      NOTE:
      • Check that the park/neutral position switch and shift lever are in N position.
      • Securely press in the lock piece until the lock engages.
  3. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD RETAINER

    Refer to PROCEDURE - Step 12

  4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 13

  5. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 20

  6. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 29

  7. INSTALL NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 30

  8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 25

  9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    HINT:

    Use the same procedure as for the RH side.

  10. INSTALL INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  11. INSTALL BOX BOTTOM MAT

    Refer to PROCEDURE - Step 21

  12. INSTALL INSTRUMENT LOWER CENTER COVER (w/o Console Box)

    Refer to PROCEDURE - Step 23

  13. INSTALL INSTRUMENT LOWER CENTER COVER (w/ Console Box)

    Refer to PROCEDURE - Step 24

  14. INSTALL CONSOLE BOX ASSEMBLY (for Slide Type)

    (Refer to INSTALLATION [12/2015 - ] )

  15. INSTALL CONSOLE BOX ASSEMBLY (for Fixed Type)

    (Refer to INSTALLATION [12/2015 - ] )

  16. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  17. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
    1. Connect the indicator light wire connector.
    2. Engage the 4 clips to install the position indicator housing assembly to the center instrument cluster finish panel sub-assembly.

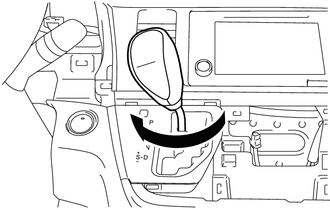

  18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob sub-assembly clockwise to install it to the shift lever assembly.
      GTY707772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  20. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 45

  21. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 46

  22. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  23. INSTALL NO. 1 INSTRUMENT PANEL LOWER FINISH PANEL

    Refer to PROCEDURE - Step 38

  24. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 47

  25. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Use the same procedure as for the RH side.

  26. INSTALL COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 34

  27. INSTALL COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side.

  28. INSTALL FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 36

  29. INSTALL FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  30. INSPECT SHIFT LEVER POSITION

    See step  1
